1) Load and prepare data

107 minute read

import numpy as np
import pandas as pd

import sqlite3 as sql
import xml.etree.ElementTree as ET

import warnings
warnings.filterwarnings('ignore')

pd.set_option('display.max_columns', None)

The european soccer database consists of the data related to the soccer matches of 10 european soccer leagues from 2008/2009 season to 2015/2016 season.

con = sql.connect("../data/database.sqlite")

sql_master_tables = pd.read_sql('select * from sqlite_master where type="table";',con)
sql_master_tables

	type	name	tbl_name	rootpage	sql
0	table	sqlite_sequence	sqlite_sequence	4	CREATE TABLE sqlite_sequence(name,seq)
1	table	Player_Attributes	Player_Attributes	11	CREATE TABLE "Player_Attributes" (\n\t`id`\tIN...
2	table	Player	Player	14	CREATE TABLE `Player` (\n\t`id`\tINTEGER PRIMA...
3	table	Match	Match	18	CREATE TABLE `Match` (\n\t`id`\tINTEGER PRIMAR...
4	table	League	League	24	CREATE TABLE `League` (\n\t`id`\tINTEGER PRIMA...
5	table	Country	Country	26	CREATE TABLE `Country` (\n\t`id`\tINTEGER PRIM...
6	table	Team	Team	29	CREATE TABLE "Team" (\n\t`id`\tINTEGER PRIMARY...
7	table	Team_Attributes	Team_Attributes	2	CREATE TABLE `Team_Attributes` (\n\t`id`\tINTE...

pd.read_sql(
    "select * from sqlite_sequence", con
    )

	name	seq
0	Team	103916
1	Country	51958
2	League	51958
3	Match	51958
4	Player	11075
5	Player_Attributes	183978
6	Team_Attributes	1458

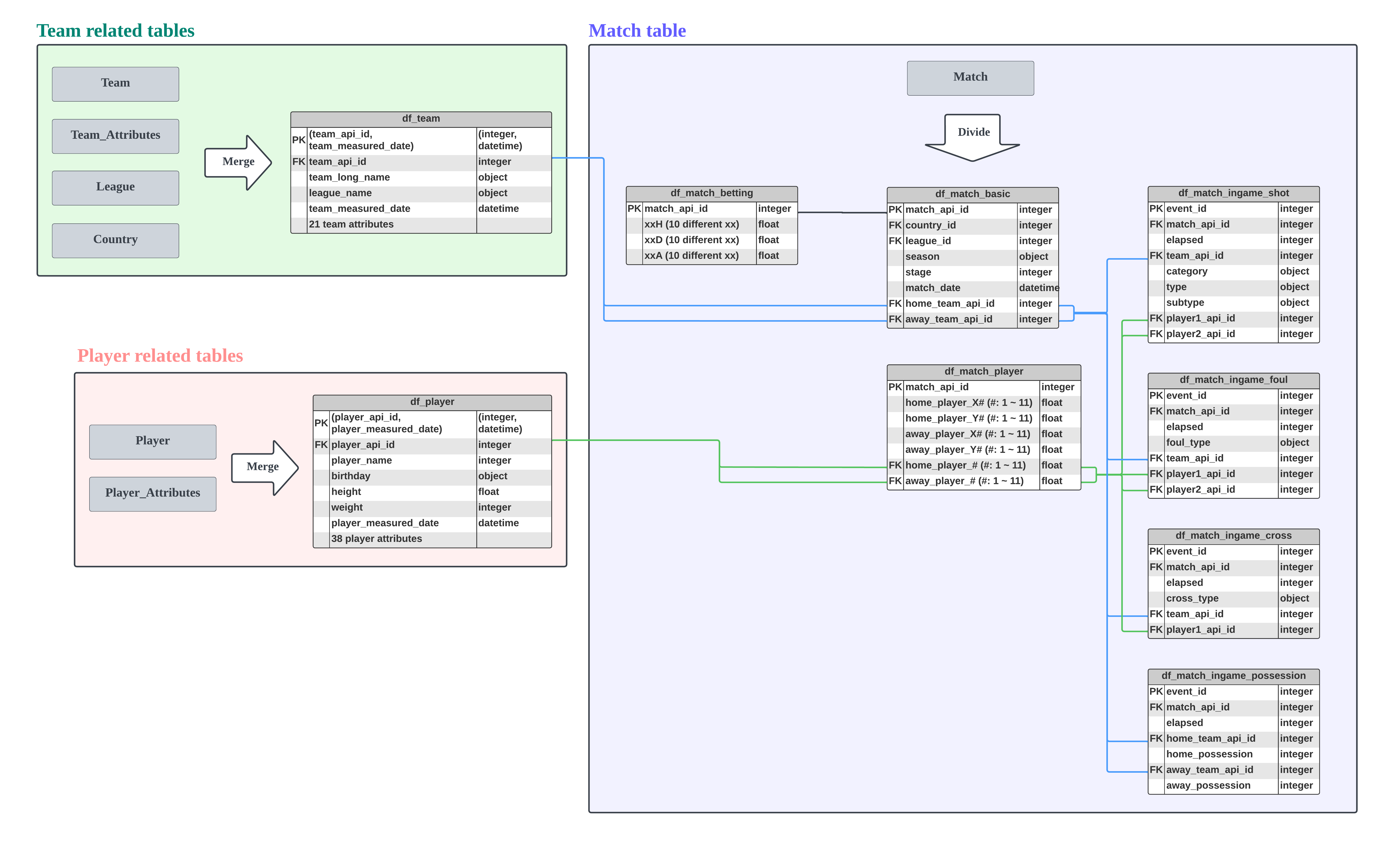

There are 7 tables.
- Player related tables
  - Player table
  - Player_Attributes table

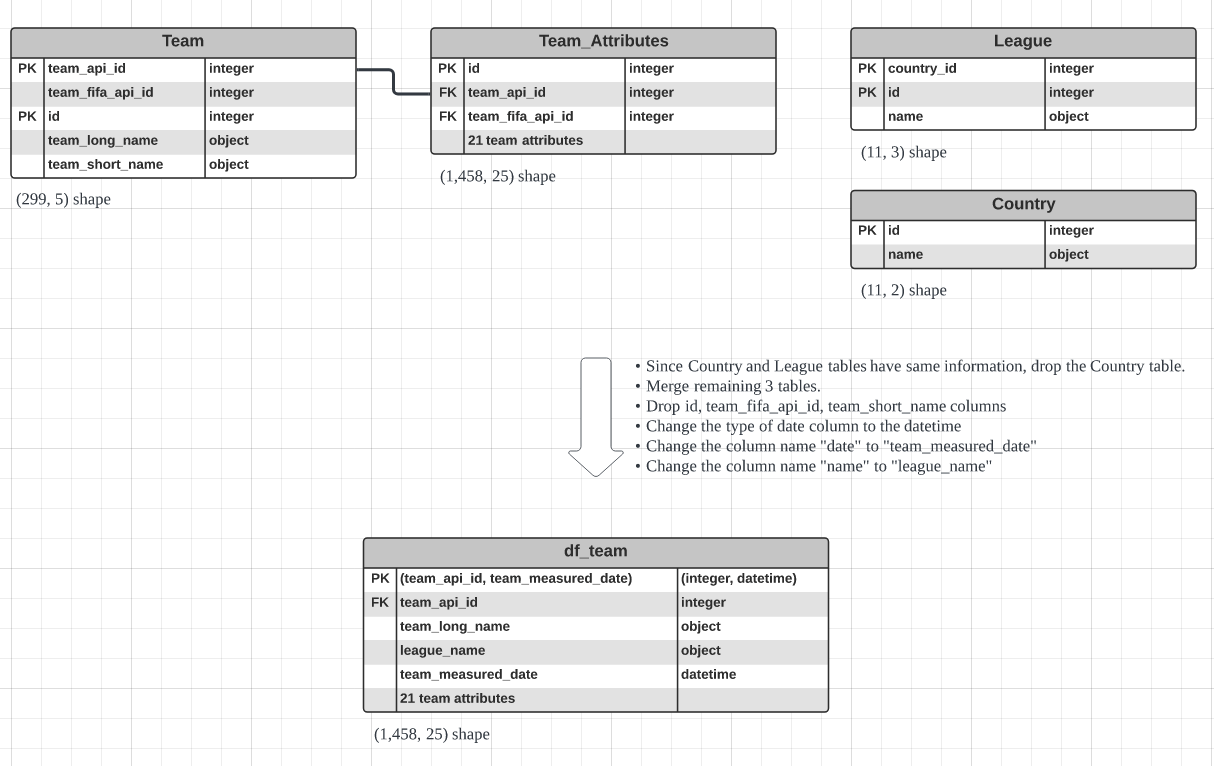

- Team related tables
  - Country table
  - League table
  - Team table
  - Team_Attributes table
- Match related tables
  - Match table

1.1. Player

org_player = pd.read_sql(
    "select * from Player", con
    )

org_player.head()

	id	player_api_id	player_name	player_fifa_api_id	birthday	height	weight
0	1	505942	Aaron Appindangoye	218353	1992-02-29 00:00:00	182.88	187
1	2	155782	Aaron Cresswell	189615	1989-12-15 00:00:00	170.18	146
2	3	162549	Aaron Doran	186170	1991-05-13 00:00:00	170.18	163
3	4	30572	Aaron Galindo	140161	1982-05-08 00:00:00	182.88	198
4	5	23780	Aaron Hughes	17725	1979-11-08 00:00:00	182.88	154

org_player.shape

(11060, 7)

len(org_player.player_api_id.unique())

len(org_player.player_fifa_api_id.unique())

sum(org_player.groupby(["player_api_id"]).nunique().player_fifa_api_id != 1)

There are total 11,060 soccer players and their birthday, height, and weight information.
Each player has exactly one player_api_id, one player_fifa_api_id, and one (player_api_id, player_fifa_api_id) set. So, we can use any player id to identify a player.

1.2. Player_Attributes

org_player_attr = pd.read_sql(
    "select * from Player_Attributes", con
    )

org_player_attr.head()

	id	player_fifa_api_id	player_api_id	date	overall_rating	potential	preferred_foot	attacking_work_rate	defensive_work_rate	crossing	finishing	heading_accuracy	short_passing	volleys	dribbling	curve	free_kick_accuracy	long_passing	ball_control	acceleration	sprint_speed	agility	reactions	balance	shot_power	jumping	stamina	strength	long_shots	aggression	interceptions	positioning	vision	penalties	marking	standing_tackle	sliding_tackle	gk_diving	gk_handling	gk_kicking	gk_positioning	gk_reflexes
0	1	218353	505942	2016-02-18 00:00:00	67.0	71.0	right	medium	medium	49.0	44.0	71.0	61.0	44.0	51.0	45.0	39.0	64.0	49.0	60.0	64.0	59.0	47.0	65.0	55.0	58.0	54.0	76.0	35.0	71.0	70.0	45.0	54.0	48.0	65.0	69.0	69.0	6.0	11.0	10.0	8.0	8.0
1	2	218353	505942	2015-11-19 00:00:00	67.0	71.0	right	medium	medium	49.0	44.0	71.0	61.0	44.0	51.0	45.0	39.0	64.0	49.0	60.0	64.0	59.0	47.0	65.0	55.0	58.0	54.0	76.0	35.0	71.0	70.0	45.0	54.0	48.0	65.0	69.0	69.0	6.0	11.0	10.0	8.0	8.0
2	3	218353	505942	2015-09-21 00:00:00	62.0	66.0	right	medium	medium	49.0	44.0	71.0	61.0	44.0	51.0	45.0	39.0	64.0	49.0	60.0	64.0	59.0	47.0	65.0	55.0	58.0	54.0	76.0	35.0	63.0	41.0	45.0	54.0	48.0	65.0	66.0	69.0	6.0	11.0	10.0	8.0	8.0
3	4	218353	505942	2015-03-20 00:00:00	61.0	65.0	right	medium	medium	48.0	43.0	70.0	60.0	43.0	50.0	44.0	38.0	63.0	48.0	60.0	64.0	59.0	46.0	65.0	54.0	58.0	54.0	76.0	34.0	62.0	40.0	44.0	53.0	47.0	62.0	63.0	66.0	5.0	10.0	9.0	7.0	7.0
4	5	218353	505942	2007-02-22 00:00:00	61.0	65.0	right	medium	medium	48.0	43.0	70.0	60.0	43.0	50.0	44.0	38.0	63.0	48.0	60.0	64.0	59.0	46.0	65.0	54.0	58.0	54.0	76.0	34.0	62.0	40.0	44.0	53.0	47.0	62.0	63.0	66.0	5.0	10.0	9.0	7.0	7.0

org_player_attr.shape

(183978, 42)

There are total 38 player attributes.
player_fifa_api_id or player_api_id can be used to merge the Player and Player_Attribute tables.

len(org_player_attr.player_fifa_api_id.unique())

len(org_player_attr.player_api_id.unique())

There are different number of unique player_api_id and player_fifa_api_id.
It means that some player_api_id have different player_fifa_api_id.

target_bool = org_player_attr.groupby(["player_api_id"]).nunique().player_fifa_api_id != 1
target_player_api = org_player_attr.groupby(["player_api_id"]).nunique().player_fifa_api_id[target_bool].index
org_player_attr[org_player_attr.player_api_id.isin(target_player_api)].sort_values(["player_api_id", "date"]).head(15)

	id	player_fifa_api_id	player_api_id	date	overall_rating	potential	preferred_foot	attacking_work_rate	defensive_work_rate	crossing	finishing	heading_accuracy	short_passing	volleys	dribbling	curve	free_kick_accuracy	long_passing	ball_control	acceleration	sprint_speed	agility	reactions	balance	shot_power	jumping	stamina	strength	long_shots	aggression	interceptions	positioning	vision	penalties	marking	standing_tackle	sliding_tackle	gk_diving	gk_handling	gk_kicking	gk_positioning	gk_reflexes
104862	104863	202486	11285	2007-02-22 00:00:00	62.0	68.0	right	high	medium	62.0	68.0	47.0	56.0	35.0	63.0	56.0	53.0	47.0	57.0	84.0	81.0	74.0	73.0	71.0	54.0	68.0	64.0	52.0	56.0	53.0	22.0	71.0	41.0	55.0	22.0	24.0	20.0	8.0	15.0	8.0	8.0	6.0
104881	104882	208618	11285	2007-02-22 00:00:00	NaN	NaN	None	None	None	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
104861	104862	202486	11285	2011-02-22 00:00:00	68.0	77.0	right	medium	medium	41.0	26.0	72.0	58.0	38.0	49.0	33.0	51.0	59.0	52.0	59.0	66.0	52.0	63.0	76.0	68.0	75.0	64.0	81.0	53.0	71.0	68.0	31.0	49.0	47.0	70.0	63.0	64.0	11.0	13.0	8.0	8.0	12.0
104860	104861	202486	11285	2011-08-30 00:00:00	65.0	69.0	right	medium	medium	41.0	26.0	72.0	58.0	38.0	49.0	33.0	51.0	59.0	51.0	54.0	51.0	51.0	58.0	41.0	68.0	47.0	50.0	73.0	53.0	71.0	65.0	31.0	49.0	47.0	69.0	63.0	64.0	11.0	13.0	8.0	8.0	12.0
104859	104860	202486	11285	2012-02-22 00:00:00	66.0	72.0	right	medium	medium	41.0	26.0	74.0	63.0	38.0	49.0	33.0	51.0	59.0	61.0	54.0	51.0	51.0	58.0	41.0	68.0	47.0	51.0	75.0	53.0	71.0	65.0	31.0	49.0	47.0	65.0	69.0	64.0	11.0	13.0	8.0	8.0	12.0
104880	104881	208618	11285	2012-08-31 00:00:00	62.0	68.0	right	high	medium	62.0	68.0	47.0	56.0	35.0	63.0	56.0	53.0	47.0	57.0	84.0	81.0	74.0	73.0	71.0	54.0	68.0	64.0	52.0	56.0	53.0	22.0	71.0	41.0	55.0	22.0	24.0	20.0	8.0	15.0	8.0	8.0	6.0
104879	104880	208618	11285	2014-03-21 00:00:00	62.0	68.0	right	high	medium	62.0	68.0	47.0	56.0	35.0	63.0	56.0	53.0	47.0	57.0	84.0	81.0	74.0	73.0	71.0	54.0	68.0	64.0	52.0	56.0	53.0	22.0	71.0	41.0	55.0	22.0	24.0	20.0	8.0	15.0	8.0	8.0	6.0
104878	104879	208618	11285	2014-04-11 00:00:00	63.0	68.0	right	high	medium	63.0	68.0	47.0	57.0	35.0	64.0	56.0	53.0	49.0	58.0	84.0	81.0	74.0	74.0	71.0	54.0	68.0	64.0	52.0	56.0	53.0	22.0	71.0	45.0	55.0	22.0	24.0	20.0	8.0	15.0	8.0	8.0	6.0
104877	104878	208618	11285	2014-04-25 00:00:00	65.0	68.0	right	high	medium	63.0	65.0	47.0	62.0	35.0	65.0	56.0	67.0	49.0	64.0	84.0	81.0	74.0	74.0	71.0	54.0	68.0	64.0	52.0	56.0	53.0	22.0	71.0	51.0	55.0	22.0	24.0	20.0	8.0	15.0	8.0	8.0	6.0
104858	104859	202486	11285	2014-09-18 00:00:00	65.0	68.0	right	high	medium	63.0	65.0	47.0	64.0	35.0	65.0	56.0	67.0	49.0	64.0	84.0	78.0	74.0	74.0	71.0	54.0	67.0	64.0	53.0	56.0	53.0	22.0	71.0	51.0	55.0	22.0	24.0	20.0	8.0	15.0	8.0	8.0	6.0
104876	104877	208618	11285	2014-09-18 00:00:00	NaN	NaN	None	None	None	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
104875	104876	208618	11285	2014-11-14 00:00:00	65.0	68.0	right	high	medium	63.0	65.0	47.0	64.0	35.0	65.0	56.0	67.0	49.0	64.0	84.0	78.0	74.0	74.0	71.0	54.0	67.0	64.0	53.0	56.0	53.0	22.0	71.0	51.0	55.0	22.0	24.0	20.0	8.0	15.0	8.0	8.0	6.0
104874	104875	208618	11285	2014-11-28 00:00:00	65.0	68.0	right	high	medium	63.0	65.0	47.0	64.0	35.0	65.0	56.0	67.0	49.0	64.0	84.0	78.0	74.0	74.0	71.0	54.0	67.0	64.0	53.0	56.0	53.0	22.0	71.0	51.0	55.0	22.0	24.0	20.0	8.0	15.0	8.0	8.0	6.0
104873	104874	208618	11285	2015-02-13 00:00:00	70.0	77.0	right	high	medium	70.0	65.0	47.0	72.0	35.0	70.0	56.0	68.0	62.0	69.0	84.0	78.0	74.0	77.0	71.0	54.0	67.0	64.0	53.0	56.0	53.0	22.0	76.0	58.0	55.0	22.0	24.0	20.0	8.0	15.0	8.0	8.0	6.0
104872	104873	208618	11285	2015-02-20 00:00:00	70.0	77.0	right	high	medium	70.0	65.0	47.0	72.0	43.0	70.0	56.0	68.0	62.0	69.0	84.0	78.0	74.0	77.0	71.0	54.0	67.0	64.0	53.0	56.0	53.0	22.0	76.0	58.0	55.0	22.0	24.0	20.0	8.0	15.0	8.0	8.0	6.0

For example, player_api_id 11285 have two player_fifa_api_id 208618 and 202486.
So it is better to use the player_api_id when merge tables.
There are 11060 players’ attributes based on the number of unique player_api_id.

Let’s make one player table by merging the Player and Player_Attributes table.
We drop the id and player_fifa_api_id columns because we will only use player_api_id to identify a player later.

df_player = org_player_attr.drop(["id", "player_fifa_api_id"], axis = 1) \
                           .merge(org_player.drop(["id", "player_fifa_api_id"], axis = 1),
                                  how = "left", on = "player_api_id")

df_player

	player_api_id	date	overall_rating	potential	preferred_foot	attacking_work_rate	defensive_work_rate	crossing	finishing	heading_accuracy	short_passing	volleys	dribbling	curve	free_kick_accuracy	long_passing	ball_control	acceleration	sprint_speed	agility	reactions	balance	shot_power	jumping	stamina	strength	long_shots	aggression	interceptions	positioning	vision	penalties	marking	standing_tackle	sliding_tackle	gk_diving	gk_handling	gk_kicking	gk_positioning	gk_reflexes	player_name	birthday	height	weight
0	505942	2016-02-18 00:00:00	67.0	71.0	right	medium	medium	49.0	44.0	71.0	61.0	44.0	51.0	45.0	39.0	64.0	49.0	60.0	64.0	59.0	47.0	65.0	55.0	58.0	54.0	76.0	35.0	71.0	70.0	45.0	54.0	48.0	65.0	69.0	69.0	6.0	11.0	10.0	8.0	8.0	Aaron Appindangoye	1992-02-29 00:00:00	182.88	187
1	505942	2015-11-19 00:00:00	67.0	71.0	right	medium	medium	49.0	44.0	71.0	61.0	44.0	51.0	45.0	39.0	64.0	49.0	60.0	64.0	59.0	47.0	65.0	55.0	58.0	54.0	76.0	35.0	71.0	70.0	45.0	54.0	48.0	65.0	69.0	69.0	6.0	11.0	10.0	8.0	8.0	Aaron Appindangoye	1992-02-29 00:00:00	182.88	187
2	505942	2015-09-21 00:00:00	62.0	66.0	right	medium	medium	49.0	44.0	71.0	61.0	44.0	51.0	45.0	39.0	64.0	49.0	60.0	64.0	59.0	47.0	65.0	55.0	58.0	54.0	76.0	35.0	63.0	41.0	45.0	54.0	48.0	65.0	66.0	69.0	6.0	11.0	10.0	8.0	8.0	Aaron Appindangoye	1992-02-29 00:00:00	182.88	187
3	505942	2015-03-20 00:00:00	61.0	65.0	right	medium	medium	48.0	43.0	70.0	60.0	43.0	50.0	44.0	38.0	63.0	48.0	60.0	64.0	59.0	46.0	65.0	54.0	58.0	54.0	76.0	34.0	62.0	40.0	44.0	53.0	47.0	62.0	63.0	66.0	5.0	10.0	9.0	7.0	7.0	Aaron Appindangoye	1992-02-29 00:00:00	182.88	187
4	505942	2007-02-22 00:00:00	61.0	65.0	right	medium	medium	48.0	43.0	70.0	60.0	43.0	50.0	44.0	38.0	63.0	48.0	60.0	64.0	59.0	46.0	65.0	54.0	58.0	54.0	76.0	34.0	62.0	40.0	44.0	53.0	47.0	62.0	63.0	66.0	5.0	10.0	9.0	7.0	7.0	Aaron Appindangoye	1992-02-29 00:00:00	182.88	187
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
183973	39902	2009-08-30 00:00:00	83.0	85.0	right	medium	low	84.0	77.0	59.0	89.0	77.0	84.0	86.0	78.0	84.0	85.0	66.0	72.0	77.0	86.0	73.0	76.0	58.0	72.0	67.0	81.0	56.0	78.0	86.0	88.0	83.0	22.0	31.0	30.0	9.0	20.0	84.0	20.0	20.0	Zvjezdan Misimovic	1982-06-05 00:00:00	180.34	176
183974	39902	2009-02-22 00:00:00	78.0	80.0	right	medium	low	74.0	76.0	53.0	84.0	77.0	85.0	86.0	74.0	73.0	86.0	66.0	67.0	77.0	74.0	73.0	75.0	58.0	66.0	65.0	73.0	61.0	64.0	72.0	88.0	70.0	32.0	31.0	30.0	9.0	20.0	73.0	20.0	20.0	Zvjezdan Misimovic	1982-06-05 00:00:00	180.34	176
183975	39902	2008-08-30 00:00:00	77.0	80.0	right	medium	low	74.0	71.0	53.0	84.0	77.0	85.0	86.0	74.0	73.0	86.0	66.0	67.0	77.0	74.0	73.0	75.0	58.0	66.0	65.0	73.0	67.0	64.0	72.0	88.0	70.0	32.0	31.0	30.0	9.0	20.0	73.0	20.0	20.0	Zvjezdan Misimovic	1982-06-05 00:00:00	180.34	176
183976	39902	2007-08-30 00:00:00	78.0	81.0	right	medium	low	74.0	64.0	57.0	86.0	77.0	87.0	86.0	73.0	73.0	91.0	61.0	60.0	77.0	69.0	73.0	72.0	58.0	67.0	59.0	78.0	63.0	63.0	68.0	88.0	53.0	28.0	32.0	30.0	9.0	20.0	73.0	20.0	20.0	Zvjezdan Misimovic	1982-06-05 00:00:00	180.34	176
183977	39902	2007-02-22 00:00:00	80.0	81.0	right	medium	low	74.0	68.0	57.0	88.0	77.0	87.0	86.0	53.0	78.0	91.0	58.0	64.0	77.0	66.0	73.0	72.0	58.0	67.0	59.0	78.0	63.0	63.0	68.0	88.0	53.0	38.0	32.0	30.0	9.0	9.0	78.0	7.0	15.0	Zvjezdan Misimovic	1982-06-05 00:00:00	180.34	176

183978 rows × 44 columns

df_player.dtypes

player_api_id            int64
date                    object
overall_rating         float64
potential              float64
preferred_foot          object
attacking_work_rate     object
defensive_work_rate     object
crossing               float64
finishing              float64
heading_accuracy       float64
short_passing          float64
volleys                float64
dribbling              float64
curve                  float64
free_kick_accuracy     float64
long_passing           float64
ball_control           float64
acceleration           float64
sprint_speed           float64
agility                float64
reactions              float64
balance                float64
shot_power             float64
jumping                float64
stamina                float64
strength               float64
long_shots             float64
aggression             float64
interceptions          float64
positioning            float64
vision                 float64
penalties              float64
marking                float64
standing_tackle        float64
sliding_tackle         float64
gk_diving              float64
gk_handling            float64
gk_kicking             float64
gk_positioning         float64
gk_reflexes            float64
player_name             object
birthday                object
height                 float64
weight                   int64
dtype: object

birthday and date columns need to be changed to the datetime type.
Since there are other date columns that have different meanings in other tables, let’s change the column name date in this table to the player_measured_date.

df_player["player_measured_date"] = pd.to_datetime(df_player.date)
df_player["birthday"] = pd.to_datetime(df_player.birthday)

# just change the columns order
df_player = df_player[["player_api_id", "player_name", "birthday", "height", "weight", "player_measured_date",
                       'overall_rating', 'potential', 'preferred_foot', 'attacking_work_rate', 'defensive_work_rate',
                       'crossing', 'finishing', 'heading_accuracy', 'short_passing', 'volleys',
                       'dribbling', 'curve', 'free_kick_accuracy', 'long_passing', 'ball_control',
                       'acceleration', 'sprint_speed', 'agility', 'reactions', 'balance',
                       'shot_power', 'jumping', 'stamina', 'strength', 'long_shots',
                       'aggression', 'interceptions', 'positioning', 'vision', 'penalties',
                       'marking', 'standing_tackle', 'sliding_tackle', 'gk_diving', 'gk_handling',
                       'gk_kicking', 'gk_positioning', 'gk_reflexes']]

df_player

	player_api_id	player_name	birthday	height	weight	player_measured_date	overall_rating	potential	preferred_foot	attacking_work_rate	defensive_work_rate	crossing	finishing	heading_accuracy	short_passing	volleys	dribbling	curve	free_kick_accuracy	long_passing	ball_control	acceleration	sprint_speed	agility	reactions	balance	shot_power	jumping	stamina	strength	long_shots	aggression	interceptions	positioning	vision	penalties	marking	standing_tackle	sliding_tackle	gk_diving	gk_handling	gk_kicking	gk_positioning	gk_reflexes
0	505942	Aaron Appindangoye	1992-02-29	182.88	187	2016-02-18	67.0	71.0	right	medium	medium	49.0	44.0	71.0	61.0	44.0	51.0	45.0	39.0	64.0	49.0	60.0	64.0	59.0	47.0	65.0	55.0	58.0	54.0	76.0	35.0	71.0	70.0	45.0	54.0	48.0	65.0	69.0	69.0	6.0	11.0	10.0	8.0	8.0
1	505942	Aaron Appindangoye	1992-02-29	182.88	187	2015-11-19	67.0	71.0	right	medium	medium	49.0	44.0	71.0	61.0	44.0	51.0	45.0	39.0	64.0	49.0	60.0	64.0	59.0	47.0	65.0	55.0	58.0	54.0	76.0	35.0	71.0	70.0	45.0	54.0	48.0	65.0	69.0	69.0	6.0	11.0	10.0	8.0	8.0
2	505942	Aaron Appindangoye	1992-02-29	182.88	187	2015-09-21	62.0	66.0	right	medium	medium	49.0	44.0	71.0	61.0	44.0	51.0	45.0	39.0	64.0	49.0	60.0	64.0	59.0	47.0	65.0	55.0	58.0	54.0	76.0	35.0	63.0	41.0	45.0	54.0	48.0	65.0	66.0	69.0	6.0	11.0	10.0	8.0	8.0
3	505942	Aaron Appindangoye	1992-02-29	182.88	187	2015-03-20	61.0	65.0	right	medium	medium	48.0	43.0	70.0	60.0	43.0	50.0	44.0	38.0	63.0	48.0	60.0	64.0	59.0	46.0	65.0	54.0	58.0	54.0	76.0	34.0	62.0	40.0	44.0	53.0	47.0	62.0	63.0	66.0	5.0	10.0	9.0	7.0	7.0
4	505942	Aaron Appindangoye	1992-02-29	182.88	187	2007-02-22	61.0	65.0	right	medium	medium	48.0	43.0	70.0	60.0	43.0	50.0	44.0	38.0	63.0	48.0	60.0	64.0	59.0	46.0	65.0	54.0	58.0	54.0	76.0	34.0	62.0	40.0	44.0	53.0	47.0	62.0	63.0	66.0	5.0	10.0	9.0	7.0	7.0
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
183973	39902	Zvjezdan Misimovic	1982-06-05	180.34	176	2009-08-30	83.0	85.0	right	medium	low	84.0	77.0	59.0	89.0	77.0	84.0	86.0	78.0	84.0	85.0	66.0	72.0	77.0	86.0	73.0	76.0	58.0	72.0	67.0	81.0	56.0	78.0	86.0	88.0	83.0	22.0	31.0	30.0	9.0	20.0	84.0	20.0	20.0
183974	39902	Zvjezdan Misimovic	1982-06-05	180.34	176	2009-02-22	78.0	80.0	right	medium	low	74.0	76.0	53.0	84.0	77.0	85.0	86.0	74.0	73.0	86.0	66.0	67.0	77.0	74.0	73.0	75.0	58.0	66.0	65.0	73.0	61.0	64.0	72.0	88.0	70.0	32.0	31.0	30.0	9.0	20.0	73.0	20.0	20.0
183975	39902	Zvjezdan Misimovic	1982-06-05	180.34	176	2008-08-30	77.0	80.0	right	medium	low	74.0	71.0	53.0	84.0	77.0	85.0	86.0	74.0	73.0	86.0	66.0	67.0	77.0	74.0	73.0	75.0	58.0	66.0	65.0	73.0	67.0	64.0	72.0	88.0	70.0	32.0	31.0	30.0	9.0	20.0	73.0	20.0	20.0
183976	39902	Zvjezdan Misimovic	1982-06-05	180.34	176	2007-08-30	78.0	81.0	right	medium	low	74.0	64.0	57.0	86.0	77.0	87.0	86.0	73.0	73.0	91.0	61.0	60.0	77.0	69.0	73.0	72.0	58.0	67.0	59.0	78.0	63.0	63.0	68.0	88.0	53.0	28.0	32.0	30.0	9.0	20.0	73.0	20.0	20.0
183977	39902	Zvjezdan Misimovic	1982-06-05	180.34	176	2007-02-22	80.0	81.0	right	medium	low	74.0	68.0	57.0	88.0	77.0	87.0	86.0	53.0	78.0	91.0	58.0	64.0	77.0	66.0	73.0	72.0	58.0	67.0	59.0	78.0	63.0	63.0	68.0	88.0	53.0	38.0	32.0	30.0	9.0	9.0	78.0	7.0	15.0

183978 rows × 44 columns

df_player.to_csv("../data/df_player.csv", index = False)

1.4. Summary

df_player_summary

2. Match table

org_match = pd.read_sql(
    "select * from Match", con
    )

org_match.head()

	id	country_id	league_id	season	stage	date	match_api_id	home_team_api_id	away_team_api_id	home_team_goal	away_team_goal	home_player_X1	home_player_X2	home_player_X3	home_player_X4	home_player_X5	home_player_X6	home_player_X7	home_player_X8	home_player_X9	home_player_X10	home_player_X11	away_player_X1	away_player_X2	away_player_X3	away_player_X4	away_player_X5	away_player_X6	away_player_X7	away_player_X8	away_player_X9	away_player_X10	away_player_X11	home_player_Y1	home_player_Y2	home_player_Y3	home_player_Y4	home_player_Y5	home_player_Y6	home_player_Y7	home_player_Y8	home_player_Y9	home_player_Y10	home_player_Y11	away_player_Y1	away_player_Y2	away_player_Y3	away_player_Y4	away_player_Y5	away_player_Y6	away_player_Y7	away_player_Y8	away_player_Y9	away_player_Y10	away_player_Y11	home_player_1	home_player_2	home_player_3	home_player_4	home_player_5	home_player_6	home_player_7	home_player_8	home_player_9	home_player_10	home_player_11	away_player_1	away_player_2	away_player_3	away_player_4	away_player_5	away_player_6	away_player_7	away_player_8	away_player_9	away_player_10	away_player_11	goal	shoton	shotoff	foulcommit	card	cross	corner	possession	B365H	B365D	B365A	BWH	BWD	BWA	IWH	IWD	IWA	LBH	LBD	LBA	PSH	PSD	PSA	WHH	WHD	WHA	SJH	SJD	SJA	VCH	VCD	VCA	GBH	GBD	GBA	BSH	BSD	BSA
0	1	1	1	2008/2009	1	2008-08-17 00:00:00	492473	9987	9993	1	1	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	None	None	None	None	None	None	None	None	1.73	3.40	5.00	1.75	3.35	4.20	1.85	3.2	3.5	1.80	3.3	3.75	NaN	NaN	NaN	1.70	3.30	4.33	1.90	3.3	4.00	1.65	3.40	4.50	1.78	3.25	4.00	1.73	3.40	4.20
1	2	1	1	2008/2009	1	2008-08-16 00:00:00	492474	10000	9994	0	0	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	None	None	None	None	None	None	None	None	1.95	3.20	3.60	1.80	3.30	3.95	1.90	3.2	3.5	1.90	3.2	3.50	NaN	NaN	NaN	1.83	3.30	3.60	1.95	3.3	3.80	2.00	3.25	3.25	1.85	3.25	3.75	1.91	3.25	3.60
2	3	1	1	2008/2009	1	2008-08-16 00:00:00	492475	9984	8635	0	3	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	None	None	None	None	None	None	None	None	2.38	3.30	2.75	2.40	3.30	2.55	2.60	3.1	2.3	2.50	3.2	2.50	NaN	NaN	NaN	2.50	3.25	2.40	2.63	3.3	2.50	2.35	3.25	2.65	2.50	3.20	2.50	2.30	3.20	2.75
3	4	1	1	2008/2009	1	2008-08-17 00:00:00	492476	9991	9998	5	0	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	None	None	None	None	None	None	None	None	1.44	3.75	7.50	1.40	4.00	6.80	1.40	3.9	6.0	1.44	3.6	6.50	NaN	NaN	NaN	1.44	3.75	6.00	1.44	4.0	7.50	1.45	3.75	6.50	1.50	3.75	5.50	1.44	3.75	6.50
4	5	1	1	2008/2009	1	2008-08-16 00:00:00	492477	7947	9985	1	3	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	None	None	None	None	None	None	None	None	5.00	3.50	1.65	5.00	3.50	1.60	4.00	3.3	1.7	4.00	3.4	1.72	NaN	NaN	NaN	4.20	3.40	1.70	4.50	3.5	1.73	4.50	3.40	1.65	4.50	3.50	1.65	4.75	3.30	1.67

org_match.shape

(25979, 115)

len(org_match.match_api_id.unique())

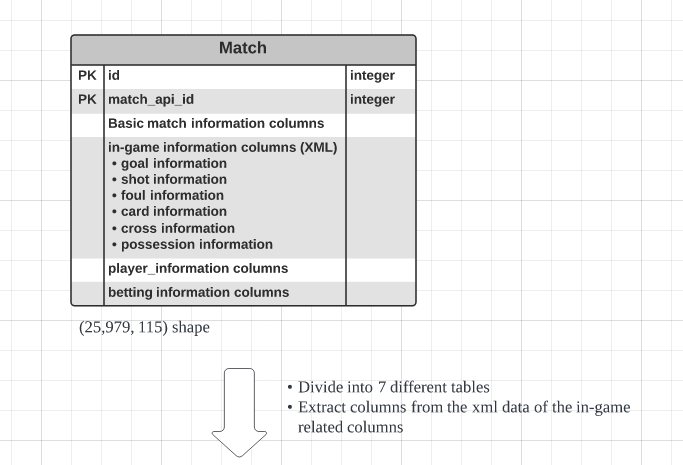

There are total 25,979 matches and 115 match information variables.
Since there are 25,979 number of unique match_api_id, let’s use the match_api_id to identify a match.
Match information variables can be categorized in 4 categories
- basic match information
  - country id, league id
  - home team id, away team id
  - season, stage, date
- player information
  - home team players, away team players
- betting information
- in-game information
  - goal, shoton, shotoff
  - foulcommit, card
  - cross, corner
  - possession
  - home_team_goal, away_team_goal

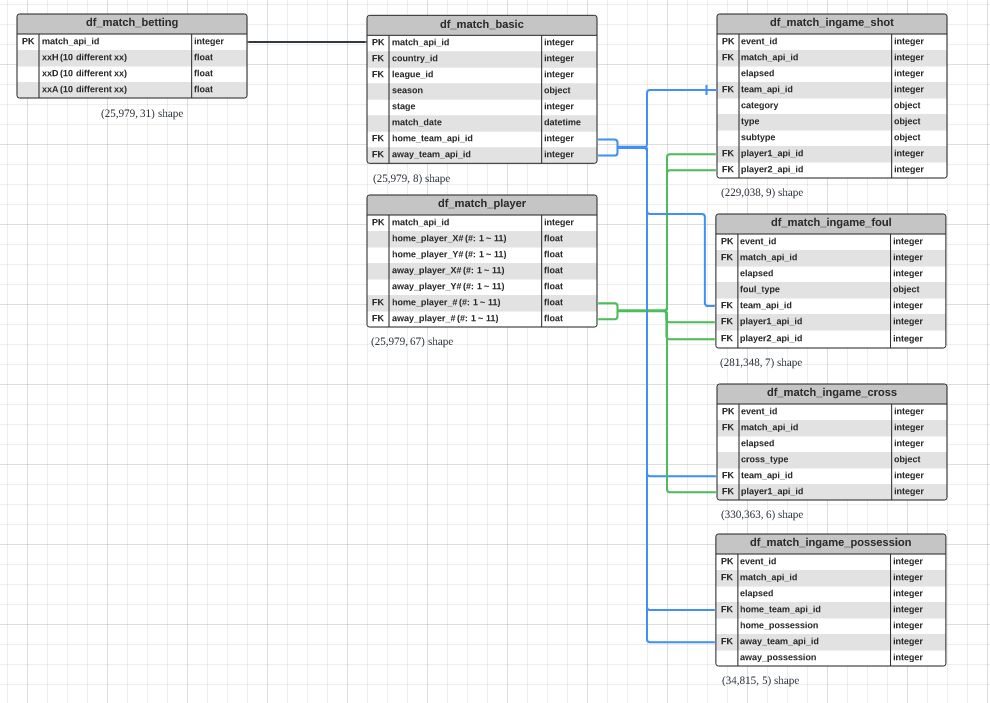

Let’s divide the match table into 4 different tables to make analysis easier later.

2.1. Basic match information

basic_match_information_col = ["match_api_id", "country_id", "league_id", "home_team_api_id", "away_team_api_id", "season", "stage", "date", "home_team_goal", "away_team_goal"]

df_match_basic = org_match[basic_match_information_col]
df_match_basic

	match_api_id	country_id	league_id	home_team_api_id	away_team_api_id	season	stage	date	home_team_goal	away_team_goal
0	492473	1	1	9987	9993	2008/2009	1	2008-08-17 00:00:00	1	1
1	492474	1	1	10000	9994	2008/2009	1	2008-08-16 00:00:00	0	0
2	492475	1	1	9984	8635	2008/2009	1	2008-08-16 00:00:00	0	3
3	492476	1	1	9991	9998	2008/2009	1	2008-08-17 00:00:00	5	0
4	492477	1	1	7947	9985	2008/2009	1	2008-08-16 00:00:00	1	3
...	...	...	...	...	...	...	...	...	...	...
25974	1992091	24558	24558	10190	10191	2015/2016	9	2015-09-22 00:00:00	1	0
25975	1992092	24558	24558	9824	10199	2015/2016	9	2015-09-23 00:00:00	1	2
25976	1992093	24558	24558	9956	10179	2015/2016	9	2015-09-23 00:00:00	2	0
25977	1992094	24558	24558	7896	10243	2015/2016	9	2015-09-22 00:00:00	0	0
25978	1992095	24558	24558	10192	9931	2015/2016	9	2015-09-23 00:00:00	4	3

25979 rows × 10 columns

df_match_basic.dtypes

match_api_id         int64
country_id           int64
league_id            int64
home_team_api_id     int64
away_team_api_id     int64
season              object
stage                int64
date                object
home_team_goal       int64
away_team_goal       int64
dtype: object

The date column need to be converted to the datetime dtype.
Since there are other date columns that have different meanings in other tables, let’s change the column name date in this table to the match_date.

df_match_basic["match_date"] = pd.to_datetime(df_match_basic.date)

# Just change the columns order
df_match_basic = df_match_basic[["match_api_id", "country_id", "league_id", "season", "stage",
                                 "match_date", "home_team_api_id", "away_team_api_id", "home_team_goal", "away_team_goal"]]
df_match_basic

	match_api_id	country_id	league_id	season	stage	match_date	home_team_api_id	away_team_api_id	home_team_goal	away_team_goal
0	492473	1	1	2008/2009	1	2008-08-17	9987	9993	1	1
1	492474	1	1	2008/2009	1	2008-08-16	10000	9994	0	0
2	492475	1	1	2008/2009	1	2008-08-16	9984	8635	0	3
3	492476	1	1	2008/2009	1	2008-08-17	9991	9998	5	0
4	492477	1	1	2008/2009	1	2008-08-16	7947	9985	1	3
...	...	...	...	...	...	...	...	...	...	...
25974	1992091	24558	24558	2015/2016	9	2015-09-22	10190	10191	1	0
25975	1992092	24558	24558	2015/2016	9	2015-09-23	9824	10199	1	2
25976	1992093	24558	24558	2015/2016	9	2015-09-23	9956	10179	2	0
25977	1992094	24558	24558	2015/2016	9	2015-09-22	7896	10243	0	0
25978	1992095	24558	24558	2015/2016	9	2015-09-23	10192	9931	4	3

25979 rows × 10 columns

Make the match result column that will be our target variable in the modeling.
- match_result: home_win / draw / away_win

home_win_bool = df_match_basic.home_team_goal > df_match_basic.away_team_goal
draw_bool = df_match_basic.home_team_goal == df_match_basic.away_team_goal
away_win_bool = df_match_basic.home_team_goal < df_match_basic.away_team_goal

df_match_basic.loc[home_win_bool, "match_result"] = "home_win"
df_match_basic.loc[draw_bool, "match_result"] = "draw"
df_match_basic.loc[away_win_bool, "match_result"] = "away_win"

df_match_basic

	match_api_id	country_id	league_id	season	stage	match_date	home_team_api_id	away_team_api_id	home_team_goal	away_team_goal	match_result
0	492473	1	1	2008/2009	1	2008-08-17	9987	9993	1	1	draw
1	492474	1	1	2008/2009	1	2008-08-16	10000	9994	0	0	draw
2	492475	1	1	2008/2009	1	2008-08-16	9984	8635	0	3	away_win
3	492476	1	1	2008/2009	1	2008-08-17	9991	9998	5	0	home_win
4	492477	1	1	2008/2009	1	2008-08-16	7947	9985	1	3	away_win
...	...	...	...	...	...	...	...	...	...	...	...
25974	1992091	24558	24558	2015/2016	9	2015-09-22	10190	10191	1	0	home_win
25975	1992092	24558	24558	2015/2016	9	2015-09-23	9824	10199	1	2	away_win
25976	1992093	24558	24558	2015/2016	9	2015-09-23	9956	10179	2	0	home_win
25977	1992094	24558	24558	2015/2016	9	2015-09-22	7896	10243	0	0	draw
25978	1992095	24558	24558	2015/2016	9	2015-09-23	10192	9931	4	3	home_win

25979 rows × 11 columns

df_match_basic.to_csv("../data/df_match_basic.csv", index = False)

2.2. Player information

player_col = ["match_api_id", 'home_player_X1', 'home_player_X2', 'home_player_X3', 'home_player_X4', 'home_player_X5',
              'home_player_X6', 'home_player_X7', 'home_player_X8', 'home_player_X9', 'home_player_X10',
              'home_player_X11', 'away_player_X1', 'away_player_X2', 'away_player_X3', 'away_player_X4',
              'away_player_X5', 'away_player_X6', 'away_player_X7', 'away_player_X8', 'away_player_X9',
              'away_player_X10', 'away_player_X11', 'home_player_Y1', 'home_player_Y2', 'home_player_Y3',
              'home_player_Y4', 'home_player_Y5', 'home_player_Y6', 'home_player_Y7', 'home_player_Y8',
              'home_player_Y9', 'home_player_Y10', 'home_player_Y11', 'away_player_Y1', 'away_player_Y2',
              'away_player_Y3', 'away_player_Y4', 'away_player_Y5', 'away_player_Y6', 'away_player_Y7',
              'away_player_Y8', 'away_player_Y9', 'away_player_Y10', 'away_player_Y11', 'home_player_1',
              'home_player_2', 'home_player_3', 'home_player_4', 'home_player_5', 'home_player_6',
              'home_player_7', 'home_player_8', 'home_player_9', 'home_player_10', 'home_player_11',
              'away_player_1', 'away_player_2', 'away_player_3', 'away_player_4', 'away_player_5',
              'away_player_6', 'away_player_7', 'away_player_8', 'away_player_9', 'away_player_10', 'away_player_11']

df_match_player = org_match[player_col]
df_match_player

	match_api_id	home_player_X1	home_player_X2	home_player_X3	home_player_X4	home_player_X5	home_player_X6	home_player_X7	home_player_X8	home_player_X9	home_player_X10	home_player_X11	away_player_X1	away_player_X2	away_player_X3	away_player_X4	away_player_X5	away_player_X6	away_player_X7	away_player_X8	away_player_X9	away_player_X10	away_player_X11	home_player_Y1	home_player_Y2	home_player_Y3	home_player_Y4	home_player_Y5	home_player_Y6	home_player_Y7	home_player_Y8	home_player_Y9	home_player_Y10	home_player_Y11	away_player_Y1	away_player_Y2	away_player_Y3	away_player_Y4	away_player_Y5	away_player_Y6	away_player_Y7	away_player_Y8	away_player_Y9	away_player_Y10	away_player_Y11	home_player_1	home_player_2	home_player_3	home_player_4	home_player_5	home_player_6	home_player_7	home_player_8	home_player_9	home_player_10	home_player_11	away_player_1	away_player_2	away_player_3	away_player_4	away_player_5	away_player_6	away_player_7	away_player_8	away_player_9	away_player_10	away_player_11
0	492473	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
1	492474	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
2	492475	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
3	492476	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
4	492477	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
25974	1992091	1.0	2.0	4.0	6.0	8.0	4.0	6.0	3.0	5.0	7.0	5.0	1.0	2.0	4.0	6.0	8.0	4.0	6.0	3.0	5.0	7.0	5.0	1.0	3.0	3.0	3.0	3.0	6.0	6.0	8.0	8.0	8.0	11.0	1.0	3.0	3.0	3.0	3.0	6.0	6.0	8.0	8.0	8.0	11.0	42231.0	678384.0	95220.0	638592.0	413155.0	45780.0	171229.0	67333.0	119839.0	143790.0	195215.0	462944.0	563066.0	8800.0	67304.0	158253.0	133126.0	186524.0	93223.0	121115.0	232110.0	289732.0
25975	1992092	1.0	3.0	5.0	7.0	2.0	4.0	6.0	8.0	5.0	4.0	6.0	1.0	2.0	4.0	6.0	8.0	3.0	5.0	7.0	3.0	5.0	7.0	1.0	3.0	3.0	3.0	7.0	7.0	7.0	7.0	9.0	11.0	11.0	1.0	3.0	3.0	3.0	3.0	7.0	7.0	7.0	10.0	10.0	10.0	33272.0	41621.0	25813.0	257845.0	114735.0	42237.0	113227.0	358156.0	32343.0	531309.0	37257.0	42276.0	114792.0	150007.0	178119.0	27232.0	570830.0	260708.0	201704.0	36382.0	34082.0	95257.0
25976	1992093	1.0	2.0	4.0	6.0	8.0	4.0	6.0	3.0	5.0	7.0	5.0	1.0	2.0	4.0	6.0	8.0	4.0	6.0	3.0	5.0	7.0	5.0	1.0	3.0	3.0	3.0	3.0	6.0	6.0	8.0	8.0	8.0	11.0	1.0	3.0	3.0	3.0	3.0	6.0	6.0	8.0	8.0	8.0	11.0	157856.0	274779.0	177689.0	294256.0	42258.0	39979.0	173936.0	147959.0	451983.0	80564.0	289472.0	10637.0	67349.0	202663.0	32597.0	114794.0	188114.0	25840.0	482200.0	95230.0	451335.0	275122.0
25977	1992094	1.0	2.0	4.0	6.0	8.0	3.0	7.0	5.0	3.0	5.0	7.0	1.0	2.0	4.0	6.0	8.0	4.0	6.0	3.0	5.0	7.0	5.0	1.0	3.0	3.0	3.0	3.0	7.0	7.0	7.0	10.0	10.0	10.0	1.0	3.0	3.0	3.0	3.0	6.0	6.0	8.0	8.0	8.0	11.0	NaN	8881.0	173534.0	39646.0	282287.0	340790.0	393337.0	8893.0	614454.0	93229.0	178142.0	274776.0	121080.0	197757.0	260964.0	231614.0	113235.0	41116.0	462608.0	42262.0	92252.0	194532.0
25978	1992095	1.0	2.0	4.0	6.0	8.0	2.0	4.0	6.0	8.0	4.0	6.0	1.0	2.0	4.0	6.0	8.0	4.0	6.0	3.0	5.0	7.0	5.0	1.0	3.0	3.0	3.0	3.0	7.0	7.0	7.0	7.0	10.0	10.0	1.0	3.0	3.0	3.0	3.0	6.0	6.0	8.0	8.0	8.0	11.0	274787.0	492132.0	108451.0	25815.0	94553.0	384376.0	598355.0	36785.0	45174.0	302079.0	71764.0	156175.0	95216.0	172768.0	22834.0	458806.0	207234.0	25772.0	40274.0	34035.0	41726.0	527103.0

25979 rows × 67 columns

df_match_player.to_csv("../data/df_match_player.csv", index = False)

2.3. Betting information

betting_col = ["match_api_id", 'B365H', 'B365D', 'B365A', 'BWH', 'BWD', 'BWA', 'IWH', 'IWD', 'IWA', 'LBH',
               'LBD', 'LBA', 'PSH', 'PSD', 'PSA', 'WHH', 'WHD', 'WHA', 'SJH', 'SJD',
               'SJA', 'VCH', 'VCD', 'VCA', 'GBH', 'GBD', 'GBA', 'BSH', 'BSD', 'BSA']

df_match_betting = org_match[betting_col]
df_match_betting

	match_api_id	B365H	B365D	B365A	BWH	BWD	BWA	IWH	IWD	IWA	LBH	LBD	LBA	PSH	PSD	PSA	WHH	WHD	WHA	SJH	SJD	SJA	VCH	VCD	VCA	GBH	GBD	GBA	BSH	BSD	BSA
0	492473	1.73	3.40	5.00	1.75	3.35	4.20	1.85	3.2	3.5	1.80	3.3	3.75	NaN	NaN	NaN	1.70	3.30	4.33	1.90	3.3	4.00	1.65	3.40	4.50	1.78	3.25	4.00	1.73	3.40	4.20
1	492474	1.95	3.20	3.60	1.80	3.30	3.95	1.90	3.2	3.5	1.90	3.2	3.50	NaN	NaN	NaN	1.83	3.30	3.60	1.95	3.3	3.80	2.00	3.25	3.25	1.85	3.25	3.75	1.91	3.25	3.60
2	492475	2.38	3.30	2.75	2.40	3.30	2.55	2.60	3.1	2.3	2.50	3.2	2.50	NaN	NaN	NaN	2.50	3.25	2.40	2.63	3.3	2.50	2.35	3.25	2.65	2.50	3.20	2.50	2.30	3.20	2.75
3	492476	1.44	3.75	7.50	1.40	4.00	6.80	1.40	3.9	6.0	1.44	3.6	6.50	NaN	NaN	NaN	1.44	3.75	6.00	1.44	4.0	7.50	1.45	3.75	6.50	1.50	3.75	5.50	1.44	3.75	6.50
4	492477	5.00	3.50	1.65	5.00	3.50	1.60	4.00	3.3	1.7	4.00	3.4	1.72	NaN	NaN	NaN	4.20	3.40	1.70	4.50	3.5	1.73	4.50	3.40	1.65	4.50	3.50	1.65	4.75	3.30	1.67
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
25974	1992091	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
25975	1992092	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
25976	1992093	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
25977	1992094	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
25978	1992095	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN

25979 rows × 31 columns

df_match_betting.to_csv("../data/df_match_betting.csv", index = False)

2.4. In-game information

in_game_col = ["match_api_id", 'goal', "home_team_goal", "away_team_goal", 'shoton',
               'shotoff', 'foulcommit', 'card', 'cross', 'corner',
               'possession']

df_match_ingame = org_match[in_game_col]
df_match_ingame

	match_api_id	goal	home_team_goal	away_team_goal	shoton	shotoff	foulcommit	card	cross	corner	possession
0	492473	None	1	1	None	None	None	None	None	None	None
1	492474	None	0	0	None	None	None	None	None	None	None
2	492475	None	0	3	None	None	None	None	None	None	None
3	492476	None	5	0	None	None	None	None	None	None	None
4	492477	None	1	3	None	None	None	None	None	None	None
...	...	...	...	...	...	...	...	...	...	...	...
25974	1992091	None	1	0	None	None	None	None	None	None	None
25975	1992092	None	1	2	None	None	None	None	None	None	None
25976	1992093	None	2	0	None	None	None	None	None	None	None
25977	1992094	None	0	0	None	None	None	None	None	None	None
25978	1992095	None	4	3	None	None	None	None	None	None	None

25979 rows × 11 columns

df_match_ingame[~df_match_ingame.goal.isna()]

	match_api_id	goal	home_team_goal	away_team_goal	shoton	shotoff	foulcommit	card	cross	corner	possession
1728	489042	<goal><value><comment>n</comment><stats><goals...	1	1	<shoton><value><stats><blocked>1</blocked></st...	<shotoff><value><stats><shotoff>1</shotoff></s...	<foulcommit><value><stats><foulscommitted>1</f...	<card><value><comment>y</comment><stats><ycard...	<cross><value><stats><crosses>1</crosses></sta...	<corner><value><stats><corners>1</corners></st...	<possession><value><comment>56</comment><event...
1729	489043	<goal><value><comment>n</comment><stats><goals...	1	0	<shoton><value><stats><blocked>1</blocked></st...	<shotoff><value><stats><shotoff>1</shotoff></s...	<foulcommit><value><stats><foulscommitted>1</f...	<card />	<cross><value><stats><crosses>1</crosses></sta...	<corner><value><stats><corners>1</corners></st...	<possession><value><comment>65</comment><event...
1730	489044	<goal><value><comment>n</comment><stats><goals...	0	1	<shoton><value><stats><blocked>1</blocked></st...	<shotoff><value><stats><shotoff>1</shotoff></s...	<foulcommit><value><stats><foulscommitted>1</f...	<card><value><comment>y</comment><stats><ycard...	<cross><value><stats><crosses>1</crosses></sta...	<corner><value><stats><corners>1</corners></st...	<possession><value><comment>45</comment><event...
1731	489045	<goal><value><comment>n</comment><stats><goals...	2	1	<shoton><value><stats><shoton>1</shoton></stat...	<shotoff><value><stats><shotoff>1</shotoff></s...	<foulcommit><value><stats><foulscommitted>1</f...	<card><value><comment>y</comment><stats><ycard...	<cross><value><stats><crosses>1</crosses></sta...	<corner><value><stats><corners>1</corners></st...	<possession><value><comment>50</comment><event...
1732	489046	<goal><value><comment>n</comment><stats><goals...	4	2	<shoton><value><stats><blocked>1</blocked></st...	<shotoff><value><stats><shotoff>1</shotoff></s...	<foulcommit><value><stats><foulscommitted>1</f...	<card><value><comment>y</comment><stats><ycard...	<cross><value><stats><corners>1</corners></sta...	<corner><value><stats><corners>1</corners></st...	<possession><value><comment>51</comment><event...
...	...	...	...	...	...	...	...	...	...	...	...
25944	1992225	<goal><value><comment>o</comment><stats><owngo...	0	1	<shoton />	<shotoff />	<foulcommit />	<card><value><comment>y</comment><stats><ycard...	<cross />	<corner />	<possession />
25945	1992226	<goal><value><comment>n</comment><stats><goals...	3	0	<shoton />	<shotoff />	<foulcommit />	<card><value><comment>y</comment><stats><ycard...	<cross />	<corner />	<possession />
25946	1992227	<goal><value><comment>n</comment><stats><goals...	2	2	<shoton />	<shotoff />	<foulcommit />	<card><value><comment>y</comment><stats><ycard...	<cross />	<corner />	<possession />
25947	1992228	<goal><value><comment>n</comment><stats><goals...	0	3	<shoton />	<shotoff />	<foulcommit />	<card><value><comment>y</comment><stats><ycard...	<cross />	<corner />	<possession />
25948	1992229	<goal><value><comment>n</comment><stats><goals...	3	1	<shoton />	<shotoff />	<foulcommit />	<card><value><comment>y</comment><stats><ycard...	<cross />	<corner />	<possession />

14217 rows × 11 columns

in-game related columns have xml format.
So we need to extract information from the xml data.
Here is the information that we can extract from the in-game related columns: https://docs.google.com/spreadsheets/d/1EIwJc1YxI5Uf1-gNGdjgmreI0JLSSicH/edit?usp=sharing&ouid=103945379872439212801&rtpof=true&sd=true
Extract the xml data from the goal column.

df_match_ingame_goal = pd.DataFrame(columns = ["match_api_id", "goal_id", "goal_elapsed", "goal_team_api_id", "goal_player1_id", "goal_player2_id",
                                               "goal_type", "goal_subtype"])

for match_api_id in df_match_ingame[~df_match_ingame.goal.isna()].match_api_id.unique():
    xml = df_match_ingame[df_match_ingame.match_api_id == match_api_id].goal.values[0]

    goal_id = []
    goal_elapsed = []
    goal_team_id = []
    goal_player1_id = []
    goal_palyer2_id = []
    goal_type = []
    goal_subtype = []
    num_elmt = 0

    for item in ET.fromstring(xml).findall(".value"):
        num_elmt += 1

        for child in item:
            if child.tag == "id": goal_id.append(child.text)
            elif child.tag == "elapsed": goal_elapsed.append(child.text)
            elif child.tag == "team": goal_team_id.append(child.text)
            elif child.tag == "player1": goal_player1_id.append(child.text)
            elif child.tag == "player2": goal_palyer2_id.append(child.text)
            elif child.tag == "goal_type": goal_type.append(child.text)
            elif child.tag == "subtype": goal_subtype.append(child.text)

        if len(goal_id) != num_elmt: goal_id.append(np.nan)
        if len(goal_elapsed) != num_elmt: goal_elapsed.append(np.nan)
        if len(goal_team_id) != num_elmt: goal_team_id.append(np.nan)
        if len(goal_player1_id) != num_elmt: goal_player1_id.append(np.nan)
        if len(goal_palyer2_id) != num_elmt: goal_palyer2_id.append(np.nan)
        if len(goal_type) != num_elmt: goal_type.append(np.nan)
        if len(goal_subtype) != num_elmt: goal_subtype.append(np.nan)

    temp = pd.DataFrame({"match_api_id": [match_api_id] * len(goal_id),
                         "goal_id": goal_id,
                         "goal_elapsed": goal_elapsed,
                         "goal_team_api_id": goal_team_id,
                         "goal_player1_id": goal_player1_id,
                         "goal_player2_id": goal_palyer2_id,
                         "goal_type": goal_type,
                         "goal_subtype": goal_subtype})

    df_match_ingame_goal = pd.concat([df_match_ingame_goal, temp])


df_match_ingame_goal

	match_api_id	goal_id	goal_elapsed	goal_team_api_id	goal_player1_id	goal_player2_id	goal_type	goal_subtype
0	489042	378998	22	10261	37799	38807	n	header
1	489042	379019	24	10260	24148	24154	n	shot
0	489043	375546	4	9825	26181	39297	n	shot
0	489044	378041	83	8650	30853	30889	n	distance
0	489045	376060	4	8654	23139	36394	n	shot
...	...	...	...	...	...	...	...	...
2	1992228	5640015	71	10192	37554	NaN	n	NaN
0	1992229	5639993	58	9824	493418	NaN	n	NaN
1	1992229	5640008	67	10243	197757	NaN	n	NaN
2	1992229	5640010	69	10243	198082	NaN	n	NaN
3	1992229	5640020	76	10243	121080	NaN	n	NaN

39980 rows × 8 columns

Extract the xml data from the shoton and shotoff columns.

df_match_ingame_shoton = pd.DataFrame(columns = ["match_api_id", "shot_id", "shot_elapsed", "shot_type", "shot_team_api_id", "shot_player1_id"])

for match_api_id in df_match_ingame[~df_match_ingame.shoton.isna()].match_api_id.unique():
    xml = df_match_ingame[df_match_ingame.match_api_id == match_api_id].shoton.values[0]

    shot_id = []
    shot_elapsed = []
    shot_type = []
    shot_team_id = []
    shot_player1_id = []
    num_elmt = 0

    for item in ET.fromstring(xml).findall(".value"):
        num_elmt += 1

        for child in item:
            if child.tag == "id": shot_id.append(child.text)
            elif child.tag == "elapsed": shot_elapsed.append(child.text)
            elif child.tag == "team": shot_team_id.append(child.text)
            elif child.tag == "player1": shot_player1_id.append(child.text)
            elif child.tag == "type": shot_type.append(child.text)

        if len(shot_id) != num_elmt: shot_id.append(np.nan)
        if len(shot_elapsed) != num_elmt: shot_elapsed.append(np.nan)
        if len(shot_team_id) != num_elmt: shot_team_id.append(np.nan)
        if len(shot_player1_id) != num_elmt: shot_player1_id.append(np.nan)
        if len(shot_type) != num_elmt: shot_type.append(np.nan)

    temp = pd.DataFrame({"match_api_id": [match_api_id] * len(shot_id),
                         "shot_id": shot_id,
                         "shot_elapsed": shot_elapsed,
                         "shot_type": shot_type,
                         "shot_team_api_id": shot_team_id,
                         "shot_player1_id": shot_player1_id})

    df_match_ingame_shoton = pd.concat([df_match_ingame_shoton, temp])

df_match_ingame_shoton

	match_api_id	shot_id	shot_elapsed	shot_type	shot_team_api_id	shot_player1_id
0	489042	378828	3	shoton	10260	24154
1	489042	378866	7	shoton	10260	24157
2	489042	378922	14	shoton	10260	30829
3	489042	378923	14	shoton	10260	30373
4	489042	378951	17	shoton	10260	30373
...	...	...	...	...	...	...
6	2030171	4940770	53	shoton	8370	256727
7	2030171	4940869	60	shoton	8558	41622
8	2030171	4940889	62	shoton	8370	482331
9	2030171	4940940	68	shoton	8370	210065
10	2030171	4941144	90	shoton	8558	452243

93755 rows × 6 columns

df_match_ingame_shotoff = pd.DataFrame(columns = ["match_api_id", "shot_id", "shot_elapsed", "shot_type", "shot_team_api_id", "shot_player1_id"])

for match_api_id in df_match_ingame[~df_match_ingame.shotoff.isna()].match_api_id.unique():
    xml = df_match_ingame[df_match_ingame.match_api_id == match_api_id].shotoff.values[0]

    shot_id = []
    shot_elapsed = []
    shot_type = []
    shot_team_id = []
    shot_player1_id = []
    num_elmt = 0

    for item in ET.fromstring(xml).findall(".value"):
        num_elmt += 1

        for child in item:
            if child.tag == "id": shot_id.append(child.text)
            elif child.tag == "elapsed": shot_elapsed.append(child.text)
            elif child.tag == "team": shot_team_id.append(child.text)
            elif child.tag == "player1": shot_player1_id.append(child.text)
            elif child.tag == "type": shot_type.append(child.text)

        if len(shot_id) != num_elmt: shot_id.append(np.nan)
        if len(shot_elapsed) != num_elmt: shot_elapsed.append(np.nan)
        if len(shot_team_id) != num_elmt: shot_team_id.append(np.nan)
        if len(shot_player1_id) != num_elmt: shot_player1_id.append(np.nan)
        if len(shot_type) != num_elmt: shot_type.append(np.nan)

    temp = pd.DataFrame({"match_api_id": [match_api_id] * len(shot_id),
                         "shot_id": shot_id,
                         "shot_elapsed": shot_elapsed,
                         "shot_type": shot_type,
                         "shot_team_api_id": shot_team_id,
                         "shot_player1_id": shot_player1_id})

    df_match_ingame_shotoff = pd.concat([df_match_ingame_shotoff, temp])

df_match_ingame_shotoff

	match_api_id	shot_id	shot_elapsed	shot_type	shot_team_api_id	shot_player1_id
0	489042	378835	4	shotoff	10260	30373
1	489042	378845	5	shotoff	10261	37799
2	489042	378995	22	shotoff	10261	24228
3	489042	379075	31	shotoff	10261	38807
4	489042	379111	34	shotoff	10260	24154
...	...	...	...	...	...	...
1	2030171	4940379	19	shotoff	8370	36130
2	2030171	4940624	44	shotoff	8370	34104
3	2030171	4940738	49	shotoff	8558	107930
4	2030171	4940963	71	shotoff	8370	210065
5	2030171	4941072	83	shotoff	8558	629579

95303 rows × 6 columns

Merge the shoton and shotoff tables because they have same columns.

df_match_ingame_shot = pd.concat([df_match_ingame_shoton, df_match_ingame_shotoff])
df_match_ingame_shot

	match_api_id	shot_id	shot_elapsed	shot_type	shot_team_api_id	shot_player1_id
0	489042	378828	3	shoton	10260	24154
1	489042	378866	7	shoton	10260	24157
2	489042	378922	14	shoton	10260	30829
3	489042	378923	14	shoton	10260	30373
4	489042	378951	17	shoton	10260	30373
...	...	...	...	...	...	...
1	2030171	4940379	19	shotoff	8370	36130
2	2030171	4940624	44	shotoff	8370	34104
3	2030171	4940738	49	shotoff	8558	107930
4	2030171	4940963	71	shotoff	8370	210065
5	2030171	4941072	83	shotoff	8558	629579

189058 rows × 6 columns

len(df_match_ingame_shot.shot_id.unique())

len(df_match_ingame_goal.goal_id.unique())

len(pd.concat([df_match_ingame_goal.goal_id, df_match_ingame_shot.shot_id]).unique())

Since goal and shot information are similar, let’s combine two tables.

df_match_ingame_goal

	match_api_id	goal_id	goal_elapsed	goal_team_api_id	goal_player1_id	goal_player2_id	goal_type	goal_subtype
0	489042	378998	22	10261	37799	38807	n	header
1	489042	379019	24	10260	24148	24154	n	shot
0	489043	375546	4	9825	26181	39297	n	shot
0	489044	378041	83	8650	30853	30889	n	distance
0	489045	376060	4	8654	23139	36394	n	shot
...	...	...	...	...	...	...	...	...
2	1992228	5640015	71	10192	37554	NaN	n	NaN
0	1992229	5639993	58	9824	493418	NaN	n	NaN
1	1992229	5640008	67	10243	197757	NaN	n	NaN
2	1992229	5640010	69	10243	198082	NaN	n	NaN
3	1992229	5640020	76	10243	121080	NaN	n	NaN

39980 rows × 8 columns

df_match_ingame_goal = df_match_ingame_goal.rename(columns = {"goal_id": "event_id",
                                                              "goal_elapsed": "elapsed",
                                                              "goal_team_api_id": "team_api_id",
                                                              "goal_player1_id": "player1_api_id",
                                                              "goal_player2_id": "player2_api_id",
                                                              "goal_type": "type",
                                                              "goal_subtype": "subtype"})

df_match_ingame_goal["category"] = "goal"
df_match_ingame_goal= df_match_ingame_goal[["match_api_id", "event_id", "elapsed", "team_api_id", "category",
                                            "type", "subtype", "player1_api_id", "player2_api_id"]]

df_match_ingame_goal

	match_api_id	event_id	elapsed	team_api_id	category	type	subtype	player1_api_id	player2_api_id
0	489042	378998	22	10261	goal	n	header	37799	38807
1	489042	379019	24	10260	goal	n	shot	24148	24154
0	489043	375546	4	9825	goal	n	shot	26181	39297
0	489044	378041	83	8650	goal	n	distance	30853	30889
0	489045	376060	4	8654	goal	n	shot	23139	36394
...	...	...	...	...	...	...	...	...	...
2	1992228	5640015	71	10192	goal	n	NaN	37554	NaN
0	1992229	5639993	58	9824	goal	n	NaN	493418	NaN
1	1992229	5640008	67	10243	goal	n	NaN	197757	NaN
2	1992229	5640010	69	10243	goal	n	NaN	198082	NaN
3	1992229	5640020	76	10243	goal	n	NaN	121080	NaN

39980 rows × 9 columns

df_match_ingame_shot = df_match_ingame_shot.rename(columns = {"shot_id": "event_id",
                                                              "shot_elapsed": "elapsed",
                                                              "shot_team_api_id": "team_api_id",
                                                              "shot_player1_id": "player1_api_id",
                                                              "shot_type": "type"})

df_match_ingame_shot["category"] = "shot"
df_match_ingame_shot["subtype"] = np.nan
df_match_ingame_shot["player2_api_id"] = np.nan


df_match_ingame_shot= df_match_ingame_shot[["match_api_id", "event_id", "elapsed", "team_api_id", "category",
                                            "type", "subtype", "player1_api_id", "player2_api_id"]]

df_match_ingame_shot

	match_api_id	event_id	elapsed	team_api_id	category	type	subtype	player1_api_id	player2_api_id
0	489042	378828	3	10260	shot	shoton	NaN	24154	NaN
1	489042	378866	7	10260	shot	shoton	NaN	24157	NaN
2	489042	378922	14	10260	shot	shoton	NaN	30829	NaN
3	489042	378923	14	10260	shot	shoton	NaN	30373	NaN
4	489042	378951	17	10260	shot	shoton	NaN	30373	NaN
...	...	...	...	...	...	...	...	...	...
1	2030171	4940379	19	8370	shot	shotoff	NaN	36130	NaN
2	2030171	4940624	44	8370	shot	shotoff	NaN	34104	NaN
3	2030171	4940738	49	8558	shot	shotoff	NaN	107930	NaN
4	2030171	4940963	71	8370	shot	shotoff	NaN	210065	NaN
5	2030171	4941072	83	8558	shot	shotoff	NaN	629579	NaN

189058 rows × 9 columns

df_match_ingame_shot = pd.concat([df_match_ingame_goal, df_match_ingame_shot])
df_match_ingame_shot

	match_api_id	event_id	elapsed	team_api_id	category	type	subtype	player1_api_id	player2_api_id
0	489042	378998	22	10261	goal	n	header	37799	38807
1	489042	379019	24	10260	goal	n	shot	24148	24154
0	489043	375546	4	9825	goal	n	shot	26181	39297
0	489044	378041	83	8650	goal	n	distance	30853	30889
0	489045	376060	4	8654	goal	n	shot	23139	36394
...	...	...	...	...	...	...	...	...	...
1	2030171	4940379	19	8370	shot	shotoff	NaN	36130	NaN
2	2030171	4940624	44	8370	shot	shotoff	NaN	34104	NaN
3	2030171	4940738	49	8558	shot	shotoff	NaN	107930	NaN
4	2030171	4940963	71	8370	shot	shotoff	NaN	210065	NaN
5	2030171	4941072	83	8558	shot	shotoff	NaN	629579	NaN

229038 rows × 9 columns

df_match_ingame_shot.to_csv("../data/df_match_ingame_shot.csv", index = False)

Extract the xml data from the foulcommit and card columns.

df_match_ingame_foul = pd.DataFrame(columns = ["match_api_id", "foul_id", "foul_elapsed", "foul_type", "foul_team_api_id",
                                               "foul_player1_id", "foul_player2_id"])

for match_api_id in df_match_ingame[~df_match_ingame.foulcommit.isna()].match_api_id.unique():
    xml = df_match_ingame[df_match_ingame.match_api_id == match_api_id].foulcommit.values[0]

    foul_id = []
    foul_elapsed = []
    foul_type = []
    foul_team_id = []
    foul_player1_id = []
    foul_player2_id = []
    num_elmt = 0

    for item in ET.fromstring(xml).findall(".value"):
        num_elmt += 1

        for child in item:
            if child.tag == "id": foul_id.append(child.text)
            elif child.tag == "elapsed": foul_elapsed.append(child.text)
            elif child.tag == "type": foul_type.append(child.text)
            elif child.tag == "team": foul_team_id.append(child.text)
            elif child.tag == "player1": foul_player1_id.append(child.text)
            elif child.tag == "player2": foul_player2_id.append(child.text)


        if len(foul_id) != num_elmt: foul_id.append(np.nan)
        if len(foul_elapsed) != num_elmt: foul_elapsed.append(np.nan)
        if len(foul_type) != num_elmt: foul_type.append(np.nan)
        if len(foul_team_id) != num_elmt: foul_team_id.append(np.nan)
        if len(foul_player1_id) != num_elmt: foul_player1_id.append(np.nan)
        if len(foul_player2_id) != num_elmt: foul_player2_id.append(np.nan)

    temp = pd.DataFrame({"match_api_id": [match_api_id] * len(foul_id),
                         "foul_id": foul_id,
                         "foul_elapsed": foul_elapsed,
                         "foul_type": foul_type,
                         "foul_team_api_id": foul_team_id,
                         "foul_player1_id": foul_player1_id,
                         "foul_player2_id": foul_player2_id,})

    df_match_ingame_foul = pd.concat([df_match_ingame_foul, temp])

df_match_ingame_foul

	match_api_id	foul_id	foul_elapsed	foul_type	foul_team_api_id	foul_player1_id	foul_player2_id
0	489042	378824	1	foulcommit	10261	25518	32569
1	489042	378826	2	foulcommit	10261	30929	24157
2	489042	378830	3	foulcommit	10261	29581	24148
3	489042	378841	5	foulcommit	10260	30373	40565
4	489042	378894	10	foulcommit	10261	29581	30829
...	...	...	...	...	...	...	...
21	2030171	4941024	77	foulcommit	8558	213814	40220
22	2030171	4941052	79	foulcommit	8558	452243	75004
23	2030171	4941084	81	foulcommit	8558	629579	75004
24	2030171	4941106	88	foulcommit	8370	210065	37654
25	2030171	4941145	90	foulcommit	8370	183449	NaN

219234 rows × 7 columns

df_match_ingame_card = pd.DataFrame(columns = ["match_api_id", "card_id", "card_elapsed", "card_type", "card_team_api_id", "card_player1_id", "card_player2_id"])

for match_api_id in df_match_ingame[~df_match_ingame.card.isna()].match_api_id.unique():
    xml = df_match_ingame[df_match_ingame.match_api_id == match_api_id].card.values[0]

    card_id = []
    card_elapsed = []
    card_type = []
    card_team_id = []
    card_player1_id = []
    card_player2_id = []
    num_elmt = 0

    for item in ET.fromstring(xml).findall(".value"):
        num_elmt += 1

        for child in item:
            if child.tag == "id": card_id.append(child.text)
            elif child.tag == "elapsed": card_elapsed.append(child.text)
            elif child.tag == "card_type": card_type.append(child.text)
            elif child.tag == "team": card_team_id.append(child.text)
            elif child.tag == "player1": card_player1_id.append(child.text)
            elif child.tag == "player2": card_player2_id.append(child.text)


        if len(card_id) != num_elmt: card_id.append(np.nan)
        if len(card_elapsed) != num_elmt: card_elapsed.append(np.nan)
        if len(card_type) != num_elmt: card_type.append(np.nan)
        if len(card_team_id) != num_elmt: card_team_id.append(np.nan)
        if len(card_player1_id) != num_elmt: card_player1_id.append(np.nan)
        if len(card_player2_id) != num_elmt: card_player2_id.append(np.nan)

    temp = pd.DataFrame({"match_api_id": [match_api_id] * len(card_id),
                         "card_id": card_id,
                         "card_elapsed": card_elapsed,
                         "card_type": card_type,
                         "card_team_api_id": card_team_id,
                         "card_player1_id": card_player1_id,
                         "card_player2_id": card_player2_id,})

    df_match_ingame_card = pd.concat([df_match_ingame_card, temp])

df_match_ingame_card

	match_api_id	card_id	card_elapsed	card_type	card_team_api_id	card_player1_id	card_player2_id
0	489042	379481	78	y	10260	24157	NaN
1	489042	379503	82	y	10260	30362	NaN
2	489042	379547	90	y	10260	30829	NaN
0	489044	377978	56	y	8650	37442	NaN
1	489044	378060	90	y	8650	46621	NaN
...	...	...	...	...	...	...	...
2	1992228	5640034	82	y	10192	25815	NaN
0	1992229	5639986	52	y	10243	198082	NaN
1	1992229	5639991	56	y	10243	121080	NaN
2	1992229	5639996	60	y	9824	214344	NaN
3	1992229	5639999	61	y	9824	294256	NaN

62114 rows × 7 columns

Since foul and card have similar information, let’s combine two tables.

df_match_ingame_foul = df_match_ingame_foul.rename(columns = {"foul_id": "event_id",
                                                              "foul_elapsed": "elapsed",
                                                              "foul_team_api_id": "team_api_id",
                                                              "foul_player1_id": "player1_api_id",
                                                              "foul_player2_id": "player2_api_id"})

df_match_ingame_foul

	match_api_id	event_id	elapsed	foul_type	team_api_id	player1_api_id	player2_api_id
0	489042	378824	1	foulcommit	10261	25518	32569
1	489042	378826	2	foulcommit	10261	30929	24157
2	489042	378830	3	foulcommit	10261	29581	24148
3	489042	378841	5	foulcommit	10260	30373	40565
4	489042	378894	10	foulcommit	10261	29581	30829
...	...	...	...	...	...	...	...
21	2030171	4941024	77	foulcommit	8558	213814	40220
22	2030171	4941052	79	foulcommit	8558	452243	75004
23	2030171	4941084	81	foulcommit	8558	629579	75004
24	2030171	4941106	88	foulcommit	8370	210065	37654
25	2030171	4941145	90	foulcommit	8370	183449	NaN

219234 rows × 7 columns

df_match_ingame_card

	match_api_id	card_id	card_elapsed	card_type	card_team_api_id	card_player1_id	card_player2_id
0	489042	379481	78	y	10260	24157	NaN
1	489042	379503	82	y	10260	30362	NaN
2	489042	379547	90	y	10260	30829	NaN
0	489044	377978	56	y	8650	37442	NaN
1	489044	378060	90	y	8650	46621	NaN
...	...	...	...	...	...	...	...
2	1992228	5640034	82	y	10192	25815	NaN
0	1992229	5639986	52	y	10243	198082	NaN
1	1992229	5639991	56	y	10243	121080	NaN
2	1992229	5639996	60	y	9824	214344	NaN
3	1992229	5639999	61	y	9824	294256	NaN

62114 rows × 7 columns

df_match_ingame_card = df_match_ingame_card.rename(columns = {"card_id": "event_id",
                                                              "card_elapsed": "elapsed",
                                                              "card_type": "foul_type",
                                                              "card_team_api_id": "team_api_id",
                                                              "card_player1_id": "player1_api_id",
                                                              "card_player2_id": "player2_api_id"})

df_match_ingame_card

	match_api_id	event_id	elapsed	foul_type	team_api_id	player1_api_id	player2_api_id
0	489042	379481	78	y	10260	24157	NaN
1	489042	379503	82	y	10260	30362	NaN
2	489042	379547	90	y	10260	30829	NaN
0	489044	377978	56	y	8650	37442	NaN
1	489044	378060	90	y	8650	46621	NaN
...	...	...	...	...	...	...	...
2	1992228	5640034	82	y	10192	25815	NaN
0	1992229	5639986	52	y	10243	198082	NaN
1	1992229	5639991	56	y	10243	121080	NaN
2	1992229	5639996	60	y	9824	214344	NaN
3	1992229	5639999	61	y	9824	294256	NaN

62114 rows × 7 columns

df_match_ingame_foul = pd.concat([df_match_ingame_foul, df_match_ingame_card])

df_match_ingame_foul

	match_api_id	event_id	elapsed	foul_type	team_api_id	player1_api_id	player2_api_id
0	489042	378824	1	foulcommit	10261	25518	32569
1	489042	378826	2	foulcommit	10261	30929	24157
2	489042	378830	3	foulcommit	10261	29581	24148
3	489042	378841	5	foulcommit	10260	30373	40565
4	489042	378894	10	foulcommit	10261	29581	30829
...	...	...	...	...	...	...	...
2	1992228	5640034	82	y	10192	25815	NaN
0	1992229	5639986	52	y	10243	198082	NaN
1	1992229	5639991	56	y	10243	121080	NaN
2	1992229	5639996	60	y	9824	214344	NaN
3	1992229	5639999	61	y	9824	294256	NaN

281348 rows × 7 columns

df_match_ingame_foul.to_csv("../data/df_match_ingame_foul.csv", index = False)

Extract the xml data from the cross and corner columns.

df_match_ingame_cross = pd.DataFrame(columns = ["match_api_id", "cross_id", "cross_elapsed", "cross_type", "cross_team_api_id", "cross_player1_id"])

for match_api_id in df_match_ingame[~df_match_ingame.cross.isna()].match_api_id.unique():
    xml = df_match_ingame[df_match_ingame.match_api_id == match_api_id].cross.values[0]

    cross_id = []
    cross_elapsed = []
    cross_type = []
    cross_team_id = []
    cross_player1_id = []
    num_elmt = 0

    for item in ET.fromstring(xml).findall(".value"):
        num_elmt += 1

        for child in item:
            if child.tag == "id": cross_id.append(child.text)
            elif child.tag == "elapsed": cross_elapsed.append(child.text)
            elif child.tag == "type": cross_type.append(child.text)
            elif child.tag == "team": cross_team_id.append(child.text)
            elif child.tag == "player1": cross_player1_id.append(child.text)


        if len(cross_id) != num_elmt: cross_id.append(np.nan)
        if len(cross_elapsed) != num_elmt: cross_elapsed.append(np.nan)
        if len(cross_type) != num_elmt: cross_type.append(np.nan)
        if len(cross_team_id) != num_elmt: cross_team_id.append(np.nan)
        if len(cross_player1_id) != num_elmt: cross_player1_id.append(np.nan)

    temp = pd.DataFrame({"match_api_id": [match_api_id] * len(cross_id),
                         "cross_id": cross_id,
                         "cross_elapsed": cross_elapsed,
                         "cross_type": cross_type,
                         "cross_team_api_id": cross_team_id,
                         "cross_player1_id": cross_player1_id})

    df_match_ingame_cross = pd.concat([df_match_ingame_cross, temp])

df_match_ingame_cross

	match_api_id	cross_id	cross_elapsed	cross_type	cross_team_api_id	cross_player1_id
0	489042	378863	7	cross	10260	30829
1	489042	378921	14	cross	10260	24148
2	489042	378960	19	corner	10261	38807
3	489042	378970	19	cross	10261	30929
4	489042	378978	20	cross	10260	24148
...	...	...	...	...	...	...
23	2030171	4940945	69	cross	8370	210065
24	2030171	4940996	74	cross	8370	46808
25	2030171	4941050	80	cross	8370	210065
26	2030171	4941089	85	cross	8370	40220
27	2030171	4941100	87	cross	8370	40220

284775 rows × 6 columns

df_match_ingame_cross.cross_type.unique()

array(['cross', 'corner', 'throwin'], dtype=object)

It seems that cross information alread include the corner information.

df_match_ingame_corner = pd.DataFrame(columns = ["match_api_id", "corner_id", "corner_elapsed", "corner_type", "corner_team_api_id", "corner_player1_id"])

for match_api_id in df_match_ingame[~df_match_ingame.corner.isna()].match_api_id.unique():
    xml = df_match_ingame[df_match_ingame.match_api_id == match_api_id].corner.values[0]

    corner_id = []
    corner_elapsed = []
    corner_type = []
    corner_team_id = []
    corner_player1_id = []
    num_elmt = 0

    for item in ET.fromstring(xml).findall(".value"):
        num_elmt += 1

        for child in item:
            if child.tag == "id": corner_id.append(child.text)
            elif child.tag == "elapsed": corner_elapsed.append(child.text)
            elif child.tag == "type": corner_type.append(child.text)
            elif child.tag == "team": corner_team_id.append(child.text)
            elif child.tag == "player1": corner_player1_id.append(child.text)


        if len(corner_id) != num_elmt: corner_id.append(np.nan)
        if len(corner_elapsed) != num_elmt: corner_elapsed.append(np.nan)
        if len(corner_type) != num_elmt: corner_type.append(np.nan)
        if len(corner_team_id) != num_elmt: corner_team_id.append(np.nan)
        if len(corner_player1_id) != num_elmt: corner_player1_id.append(np.nan)

    temp = pd.DataFrame({"match_api_id": [match_api_id] * len(corner_id),
                         "corner_id": corner_id,
                         "corner_elapsed": corner_elapsed,
                         "corner_type": corner_type,
                         "corner_team_api_id": corner_team_id,
                         "corner_player1_id": corner_player1_id})

    df_match_ingame_corner = pd.concat([df_match_ingame_corner, temp])

df_match_ingame_corner

	match_api_id	corner_id	corner_elapsed	corner_type	corner_team_api_id	corner_player1_id
0	489042	378960	19	corner	10261	38807
1	489042	378992	22	corner	10261	40565
2	489042	378996	22	corner	10261	38807
3	489042	379352	48	corner	10260	24154
4	489042	379366	51	corner	10261	38807
...	...	...	...	...	...	...
6	2030171	4940619	44	corner	8370	36130
7	2030171	4940734	49	corner	8558	498033
8	2030171	4940742	50	corner	8558	498033
9	2030171	4940990	73	corner	8558	498033
10	2030171	4941137	90	corner	8370	75004

87839 rows × 6 columns

temp = df_match_ingame_cross.merge(df_match_ingame_corner.rename(columns = {"corner_elapsed": "cross_elapsed"}), how = "left", on = ["match_api_id", "cross_elapsed"])
temp

	match_api_id	cross_id	cross_elapsed	cross_type	cross_team_api_id	cross_player1_id	corner_id	corner_type	corner_team_api_id	corner_player1_id
0	489042	378863	7	cross	10260	30829	NaN	NaN	NaN	NaN
1	489042	378921	14	cross	10260	24148	NaN	NaN	NaN	NaN
2	489042	378960	19	corner	10261	38807	378960	corner	10261	38807
3	489042	378970	19	cross	10261	30929	378960	corner	10261	38807
4	489042	378978	20	cross	10260	24148	NaN	NaN	NaN	NaN
...	...	...	...	...	...	...	...	...	...	...
296857	2030171	4940945	69	cross	8370	210065	NaN	NaN	NaN	NaN
296858	2030171	4940996	74	cross	8370	46808	NaN	NaN	NaN	NaN
296859	2030171	4941050	80	cross	8370	210065	NaN	NaN	NaN	NaN
296860	2030171	4941089	85	cross	8370	40220	NaN	NaN	NaN	NaN
296861	2030171	4941100	87	cross	8370	40220	NaN	NaN	NaN	NaN

296862 rows × 10 columns

len(df_match_ingame_corner.corner_id.unique())

len(temp.corner_id.unique())

63736 corner information out of 87839 corner information alread included in the cross information.
So we will only use the cross information combined with corner information that are not in the cross information.

temp = df_match_ingame_corner[~df_match_ingame_corner.corner_id.isin(df_match_ingame_cross.cross_id)]
temp.columns = df_match_ingame_cross.columns
temp

	match_api_id	cross_id	cross_elapsed	cross_type	cross_team_api_id	cross_player1_id
1	489042	378992	22	corner	10261	40565
6	489042	379411	59	corner	10260	24148
0	489043	375535	3	corner	9825	39297
2	489043	375562	9	corner	9825	30960
6	489045	376655	40	corner	8528	35327
...	...	...	...	...	...	...
6	2030171	4940619	44	corner	8370	36130
7	2030171	4940734	49	corner	8558	498033
8	2030171	4940742	50	corner	8558	498033
9	2030171	4940990	73	corner	8558	498033
10	2030171	4941137	90	corner	8370	75004

45588 rows × 6 columns

df_match_ingame_cross = pd.concat([df_match_ingame_cross, temp])

df_match_ingame_cross = df_match_ingame_cross.rename(columns = {"cross_id": "event_id",
                                                                "cross_elapsed": "elapsed",
                                                                "cross_team_api_id": "team_api_id",
                                                                "cross_player1_id": "player1_api_id"})

df_match_ingame_cross

	match_api_id	event_id	elapsed	cross_type	team_api_id	player1_api_id
0	489042	378863	7	cross	10260	30829
1	489042	378921	14	cross	10260	24148
2	489042	378960	19	corner	10261	38807
3	489042	378970	19	cross	10261	30929
4	489042	378978	20	cross	10260	24148
...	...	...	...	...	...	...
6	2030171	4940619	44	corner	8370	36130
7	2030171	4940734	49	corner	8558	498033
8	2030171	4940742	50	corner	8558	498033
9	2030171	4940990	73	corner	8558	498033
10	2030171	4941137	90	corner	8370	75004

330363 rows × 6 columns

df_match_ingame_cross.to_csv("../data/df_match_ingame_cross.csv", index = False)

Extract the xml data from the possesion column.

df_match_ingame_possesion = pd.DataFrame(columns = ["match_api_id", "pos_id", "pos_elapsed", "pos_home", "pos_away"])

for match_api_id in df_match_ingame[~df_match_ingame.possession.isna()].match_api_id.unique():
    xml = df_match_ingame[df_match_ingame.match_api_id == match_api_id].possession.values[0]

    pos_id = []
    pos_elapsed = []
    pos_home = []
    pos_away = []
    num_elmt = 0

    for item in ET.fromstring(xml).findall(".value"):
        num_elmt += 1

        for child in item:
            if child.tag == "id": pos_id.append(child.text)
            elif child.tag == "elapsed": pos_elapsed.append(child.text)
            elif child.tag == "homepos": pos_home.append(child.text)
            elif child.tag == "awaypos": pos_away.append(child.text)



        if len(pos_id) != num_elmt: pos_id.append(np.nan)
        if len(pos_elapsed) != num_elmt: pos_elapsed.append(np.nan)
        if len(pos_home) != num_elmt: pos_home.append(np.nan)
        if len(pos_away) != num_elmt: pos_away.append(np.nan)

    temp = pd.DataFrame({"match_api_id": [match_api_id] * len(pos_id),
                         "pos_id": pos_id,
                         "pos_elapsed": pos_elapsed,
                         "pos_home": pos_home,
                         "pos_away": pos_away})

    df_match_ingame_possesion = pd.concat([df_match_ingame_possesion, temp])

df_match_ingame_possesion = df_match_ingame_possesion.rename(columns = {"pos_id": "event_id",
                                                          "pos_elapsed": "elapsed",
                                                          "pos_home": "home_possession",
                                                          "pos_away": "away_possession"})

df_match_ingame_possesion

	match_api_id	event_id	elapsed	home_possession	away_possession
0	489042	379029	25	56	44
1	489042	379251	45	54	46
2	489042	379443	70	54	46
3	489042	379575	90	55	45
0	489043	375608	27	65	35
...	...	...	...	...	...
3	2030170	4947481	85	45	55
0	2030171	4940420	22	59	41
1	2030171	4940639	45	61	39
2	2030171	4940941	68	60	40
3	2030171	4941128	90	62	38

34815 rows × 5 columns

Since we need home team and away team api id, find and combine team ids by the match api id.

df_match_basic

	match_api_id	country_id	league_id	season	stage	match_date	home_team_api_id	away_team_api_id
0	492473	1	1	2008/2009	1	2008-08-17	9987	9993
1	492474	1	1	2008/2009	1	2008-08-16	10000	9994
2	492475	1	1	2008/2009	1	2008-08-16	9984	8635
3	492476	1	1	2008/2009	1	2008-08-17	9991	9998
4	492477	1	1	2008/2009	1	2008-08-16	7947	9985
...	...	...	...	...	...	...	...	...
25974	1992091	24558	24558	2015/2016	9	2015-09-22	10190	10191
25975	1992092	24558	24558	2015/2016	9	2015-09-23	9824	10199
25976	1992093	24558	24558	2015/2016	9	2015-09-23	9956	10179
25977	1992094	24558	24558	2015/2016	9	2015-09-22	7896	10243
25978	1992095	24558	24558	2015/2016	9	2015-09-23	10192	9931

25979 rows × 8 columns

df_match_ingame_possesion = df_match_ingame_possesion.merge(df_match_basic[["match_api_id", "home_team_api_id", "away_team_api_id"]], how = "left", on = "match_api_id") \
    [["match_api_id", "event_id", "elapsed", "home_team_api_id", "home_possession", "away_team_api_id", "away_possession"]]

df_match_ingame_possesion

	match_api_id	event_id	elapsed	home_team_api_id	home_possession	away_team_api_id	away_possession
0	489042	379029	25	10260	56	10261	44
1	489042	379251	45	10260	54	10261	46
2	489042	379443	70	10260	54	10261	46
3	489042	379575	90	10260	55	10261	45
4	489043	375608	27	9825	65	8659	35
...	...	...	...	...	...	...	...
34810	2030170	4947481	85	7878	45	8603	55
34811	2030171	4940420	22	8370	59	8558	41
34812	2030171	4940639	45	8370	61	8558	39
34813	2030171	4940941	68	8370	60	8558	40
34814	2030171	4941128	90	8370	62	8558	38

34815 rows × 7 columns

df_match_ingame_possesion.to_csv("../data/df_match_ingame_possesion.csv", index = False)

2.5. Summary

df_match_1

df_match_2

3.1. Country

org_country = pd.read_sql(
    "select * from Country", con
    )

org_country

	id	name
0	1	Belgium
1	1729	England
2	4769	France
3	7809	Germany
4	10257	Italy
5	13274	Netherlands
6	15722	Poland
7	17642	Portugal
8	19694	Scotland
9	21518	Spain
10	24558	Switzerland

There are total 11 countries.

3.2. League

org_league = pd.read_sql(
    "select * from League", con
    )

org_league

	id	country_id	name
0	1	1	Belgium Jupiler League
1	1729	1729	England Premier League
2	4769	4769	France Ligue 1
3	7809	7809	Germany 1. Bundesliga
4	10257	10257	Italy Serie A
5	13274	13274	Netherlands Eredivisie
6	15722	15722	Poland Ekstraklasa
7	17642	17642	Portugal Liga ZON Sagres
8	19694	19694	Scotland Premier League
9	21518	21518	Spain LIGA BBVA
10	24558	24558	Switzerland Super League

There are total 11 leagues from different countries.
Since there is only one league per country, country and league represent the same information.
Since we can get the country information from the league name, let’s do not use the country and only use the league table later.

3.3. Team

org_team = pd.read_sql(
    "select * from Team", con
    )

org_team.head()

	id	team_api_id	team_fifa_api_id	team_long_name	team_short_name
0	1	9987	673.0	KRC Genk	GEN
1	2	9993	675.0	Beerschot AC	BAC
2	3	10000	15005.0	SV Zulte-Waregem	ZUL
3	4	9994	2007.0	Sporting Lokeren	LOK
4	5	9984	1750.0	KSV Cercle Brugge	CEB

Since team_long_name and team_short_name have same information, we will only use the team_long_name.

org_team.shape

(299, 5)

len(org_team.team_api_id.unique())

len(org_team.team_fifa_api_id.unique())

org_team.isna().sum()

id                   0
team_api_id          0
team_fifa_api_id    11
team_long_name       0
team_short_name      0
dtype: int64

team_api_id and team_fifa_api_id have different number of unique values because team_fifa_api_id has 11 missing values.
So it is better to use team_api rather than use team_fifa_api_id to merge tables later.
There are 299 teams.

3.4. Team_Attributes

org_team_attr = pd.read_sql(
    "select * from Team_Attributes", con
    )

org_team_attr.head()

	id	team_fifa_api_id	team_api_id	date	buildUpPlaySpeed	buildUpPlaySpeedClass	buildUpPlayDribbling	buildUpPlayDribblingClass	buildUpPlayPassing	buildUpPlayPassingClass	buildUpPlayPositioningClass	chanceCreationPassing	chanceCreationPassingClass	chanceCreationCrossing	chanceCreationCrossingClass	chanceCreationShooting	chanceCreationShootingClass	chanceCreationPositioningClass	defencePressure	defencePressureClass	defenceAggression	defenceAggressionClass	defenceTeamWidth	defenceTeamWidthClass	defenceDefenderLineClass
0	1	434	9930	2010-02-22 00:00:00	60	Balanced	NaN	Little	50	Mixed	Organised	60	Normal	65	Normal	55	Normal	Organised	50	Medium	55	Press	45	Normal	Cover
1	2	434	9930	2014-09-19 00:00:00	52	Balanced	48.0	Normal	56	Mixed	Organised	54	Normal	63	Normal	64	Normal	Organised	47	Medium	44	Press	54	Normal	Cover
2	3	434	9930	2015-09-10 00:00:00	47	Balanced	41.0	Normal	54	Mixed	Organised	54	Normal	63	Normal	64	Normal	Organised	47	Medium	44	Press	54	Normal	Cover
3	4	77	8485	2010-02-22 00:00:00	70	Fast	NaN	Little	70	Long	Organised	70	Risky	70	Lots	70	Lots	Organised	60	Medium	70	Double	70	Wide	Cover
4	5	77	8485	2011-02-22 00:00:00	47	Balanced	NaN	Little	52	Mixed	Organised	53	Normal	48	Normal	52	Normal	Organised	47	Medium	47	Press	52	Normal	Cover

org_team_attr.shape

(1458, 25)

There are 21 team attributes.

len(org_team_attr.team_api_id.unique())

The number of teams that have team attributes are 288 out of total 299 teams.
This is because the team attributes were collected by team_fifa_api_id, which has 11 missing values.
**Note**: Team attributes are important features, so I think matches of teams without team attributes should be excluded from the analysis later.

team_country_info = pd.concat([df_match_basic[["home_team_api_id", "country_id"]].rename(columns = {"home_team_api_id": "team_api_id"}) ,
                               df_match_basic[["away_team_api_id", "country_id"]].rename(columns = {"away_team_api_id": "team_api_id"})]).drop_duplicates()

df_team = org_team_attr.merge(team_country_info, how = "left", on = "team_api_id") \
                       .merge(org_league.rename(columns = {"name": "league_name"}), how = "left", on = "country_id") \
                       .merge(org_team, how = "left", on = "team_api_id")

df_team.date

     2010-02-22 00:00:00
     2014-09-19 00:00:00
     2015-09-10 00:00:00
     2010-02-22 00:00:00
     2011-02-22 00:00:00
               ...
  2011-02-22 00:00:00
  2012-02-22 00:00:00
  2013-09-20 00:00:00
  2014-09-19 00:00:00
  2015-09-10 00:00:00
Name: date, Length: 1458, dtype: object

Since there are other date columns that have different meanings in other tables, let’s change the column name date in this table to the player_measured_date.

df_team["team_measured_date"] = pd.to_datetime(df_team.date)

df_team = df_team[["team_api_id", "team_long_name", "league_name", "team_measured_date",
                  'buildUpPlaySpeed', 'buildUpPlaySpeedClass', 'buildUpPlayDribbling','buildUpPlayDribblingClass',
                  'buildUpPlayPassing', 'buildUpPlayPassingClass', 'buildUpPlayPositioningClass', 'chanceCreationPassing',
                  'chanceCreationPassingClass','chanceCreationCrossing', 'chanceCreationCrossingClass', 'chanceCreationShooting',
                  'chanceCreationShootingClass','chanceCreationPositioningClass', 'defencePressure', 'defencePressureClass',
                  'defenceAggression', 'defenceAggressionClass', 'defenceTeamWidth', 'defenceTeamWidthClass',
                  'defenceDefenderLineClass']]
df_team

	team_api_id	team_long_name	league_name	team_measured_date	buildUpPlaySpeed	buildUpPlaySpeedClass	buildUpPlayDribbling	buildUpPlayDribblingClass	buildUpPlayPassing	buildUpPlayPassingClass	buildUpPlayPositioningClass	chanceCreationPassing	chanceCreationPassingClass	chanceCreationCrossing	chanceCreationCrossingClass	chanceCreationShooting	chanceCreationShootingClass	chanceCreationPositioningClass	defencePressure	defencePressureClass	defenceAggression	defenceAggressionClass	defenceTeamWidth	defenceTeamWidthClass	defenceDefenderLineClass
0	9930	FC Aarau	Switzerland Super League	2010-02-22	60	Balanced	NaN	Little	50	Mixed	Organised	60	Normal	65	Normal	55	Normal	Organised	50	Medium	55	Press	45	Normal	Cover
1	9930	FC Aarau	Switzerland Super League	2014-09-19	52	Balanced	48.0	Normal	56	Mixed	Organised	54	Normal	63	Normal	64	Normal	Organised	47	Medium	44	Press	54	Normal	Cover
2	9930	FC Aarau	Switzerland Super League	2015-09-10	47	Balanced	41.0	Normal	54	Mixed	Organised	54	Normal	63	Normal	64	Normal	Organised	47	Medium	44	Press	54	Normal	Cover
3	8485	Aberdeen	Scotland Premier League	2010-02-22	70	Fast	NaN	Little	70	Long	Organised	70	Risky	70	Lots	70	Lots	Organised	60	Medium	70	Double	70	Wide	Cover
4	8485	Aberdeen	Scotland Premier League	2011-02-22	47	Balanced	NaN	Little	52	Mixed	Organised	53	Normal	48	Normal	52	Normal	Organised	47	Medium	47	Press	52	Normal	Cover
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
1453	10000	SV Zulte-Waregem	Belgium Jupiler League	2011-02-22	52	Balanced	NaN	Little	52	Mixed	Organised	52	Normal	48	Normal	53	Normal	Organised	46	Medium	48	Press	53	Normal	Cover
1454	10000	SV Zulte-Waregem	Belgium Jupiler League	2012-02-22	54	Balanced	NaN	Little	51	Mixed	Organised	47	Normal	52	Normal	50	Normal	Organised	44	Medium	55	Press	53	Normal	Cover
1455	10000	SV Zulte-Waregem	Belgium Jupiler League	2013-09-20	54	Balanced	NaN	Little	51	Mixed	Organised	47	Normal	52	Normal	32	Little	Organised	44	Medium	58	Press	37	Normal	Cover
1456	10000	SV Zulte-Waregem	Belgium Jupiler League	2014-09-19	54	Balanced	42.0	Normal	51	Mixed	Organised	47	Normal	52	Normal	32	Little	Organised	44	Medium	58	Press	37	Normal	Cover
1457	10000	SV Zulte-Waregem	Belgium Jupiler League	2015-09-10	54	Balanced	42.0	Normal	51	Mixed	Organised	47	Normal	52	Normal	32	Little	Organised	44	Medium	58	Press	37	Normal	Cover

1458 rows × 25 columns

team_api_id_grouped_count = df_team.groupby(["league_name", "team_long_name"]).team_api_id.nunique().reset_index()
team_api_id_grouped_count[team_api_id_grouped_count.team_api_id != 1]

	league_name	team_long_name	team_api_id
15	Belgium Jupiler League	Royal Excel Mouscron	2
191	Poland Ekstraklasa	Polonia Bytom	2
193	Poland Ekstraklasa	Widzew Łódź	2

Each of the 3 teams has 2 different team_api_id. Let’s use only one of the two team_api_id

df_team.loc[df_team.team_long_name == "Royal Excel Mouscron", "team_api_id"] = 9996 # 274581 -> 9996
df_team.loc[df_team.team_long_name == "Polonia Bytom", "team_api_id"] = 8020 # 8031 -> 8020
df_team.loc[df_team.team_long_name == "Widzew Łódź", "team_api_id"] = 8024 # 8244 -> 8024

df_team = df_team.drop_duplicates()

team_api_id_grouped_count = df_team.groupby(["league_name", "team_long_name"]).team_api_id.nunique().reset_index()
team_api_id_grouped_count[team_api_id_grouped_count.team_api_id != 1]

	league_name	team_long_name	team_api_id

Now, all team has only one team_api_id.
Save the changed df_team table.

df_team.to_csv("../data/df_team.csv", index = False)

Also, fix the above team_api_ids in the all other tables.

df_match_basic.loc[df_match_basic.home_team_api_id == 274581, "home_team_api_id"] = 9996
df_match_basic.loc[df_match_basic.away_team_api_id == 274581, "away_team_api_id"] = 9996

df_match_basic.loc[df_match_basic.home_team_api_id == 8031, "home_team_api_id"] = 8020
df_match_basic.loc[df_match_basic.away_team_api_id == 8031, "away_team_api_id"] = 8020

df_match_basic.loc[df_match_basic.home_team_api_id == 8244, "home_team_api_id"] = 8024
df_match_basic.loc[df_match_basic.away_team_api_id == 8244, "away_team_api_id"] = 8024

df_match_basic.to_csv("../data/df_match_basic.csv", index = False)

df_match_ingame_cross.loc[df_match_ingame_cross.team_api_id == 274581, "team_api_id"] = 9996
df_match_ingame_cross.loc[df_match_ingame_cross.team_api_id == 8031, "team_api_id"] = 8020
df_match_ingame_cross.loc[df_match_ingame_cross.team_api_id == 8244, "team_api_id"] = 8024

df_match_ingame_cross.to_csv("../data/df_match_ingame_cross.csv", index = False)

df_match_ingame_foul.loc[df_match_ingame_foul.team_api_id == 274581, "team_api_id"] = 9996
df_match_ingame_foul.loc[df_match_ingame_foul.team_api_id == 8031, "team_api_id"] = 8020
df_match_ingame_foul.loc[df_match_ingame_foul.team_api_id == 8244, "team_api_id"] = 8024

df_match_ingame_foul.to_csv("../data/df_match_ingame_foul.csv", index = False)

df_match_ingame_possesion.loc[df_match_ingame_possesion.home_team_api_id == 274581, "home_team_api_id"] = 9996
df_match_ingame_possesion.loc[df_match_ingame_possesion.away_team_api_id == 274581, "away_team_api_id"] = 9996

df_match_ingame_possesion.loc[df_match_ingame_possesion.home_team_api_id == 8031, "home_team_api_id"] = 8020
df_match_ingame_possesion.loc[df_match_ingame_possesion.away_team_api_id == 8031, "away_team_api_id"] = 8020

df_match_ingame_possesion.loc[df_match_ingame_possesion.home_team_api_id == 8244, "home_team_api_id"] = 8024
df_match_ingame_possesion.loc[df_match_ingame_possesion.away_team_api_id == 8244, "away_team_api_id"] = 8024

df_match_ingame_possesion.to_csv("../data/df_match_ingame_possesion.csv", index = False)

df_match_ingame_shot.loc[df_match_ingame_shot.team_api_id == 274581, "team_api_id"] = 9996
df_match_ingame_shot.loc[df_match_ingame_shot.team_api_id == 8031, "team_api_id"] = 8020
df_match_ingame_shot.loc[df_match_ingame_shot.team_api_id == 8244, "team_api_id"] = 8024

df_match_ingame_shot.to_csv("../data/df_match_ingame_shot.csv", index = False)

3.6. Summary

df_team_summary

4. Overall Summary

df_overall_summary

**Note**: Team attributes are important features, so I think matches of teams without team attributes from the df_team should be excluded from the analysis later.

Youngjun Woo

1. Player related tables: Player, Player_Attributes

1.1. Player

1.2. Player_Attributes

1.3. Merge all player related tables.

1.4. Summary

2. Match table

2.1. Basic match information

2.2. Player information

2.3. Betting information

2.4. In-game information

2.5. Summary

3. Team related tables: Country, League, Team, Team_Attributes

3.1. Country

3.2. League

3.3. Team

3.4. Team_Attributes

3.5. Merge all team related tables

3.6. Summary

4. Overall Summary
