2 - 1) EDA - Match basic information

9 minute read

import numpy as np
import pandas as pd

import sqlite3 as sql

import matplotlib.pyplot as plt
import seaborn as sns
import missingno as msno

import warnings
warnings.filterwarnings('ignore')

pd.set_option('display.max_columns', None)

df_match_basic = pd.read_csv("../data/df_match_basic.csv")
df_match_basic
match_api_id country_id league_id season stage match_date home_team_api_id away_team_api_id home_team_goal away_team_goal match_result
0 492473 1 1 2008/2009 1 2008-08-17 9987 9993 1 1 draw
1 492474 1 1 2008/2009 1 2008-08-16 10000 9994 0 0 draw
2 492475 1 1 2008/2009 1 2008-08-16 9984 8635 0 3 away_win
3 492476 1 1 2008/2009 1 2008-08-17 9991 9998 5 0 home_win
4 492477 1 1 2008/2009 1 2008-08-16 7947 9985 1 3 away_win
... ... ... ... ... ... ... ... ... ... ... ...
25974 1992091 24558 24558 2015/2016 9 2015-09-22 10190 10191 1 0 home_win
25975 1992092 24558 24558 2015/2016 9 2015-09-23 9824 10199 1 2 away_win
25976 1992093 24558 24558 2015/2016 9 2015-09-23 9956 10179 2 0 home_win
25977 1992094 24558 24558 2015/2016 9 2015-09-22 7896 10243 0 0 draw
25978 1992095 24558 24558 2015/2016 9 2015-09-23 10192 9931 4 3 home_win

25979 rows × 11 columns

  • There are total 25,979 matches.

  • Change the country_id and league_id to the country and league name.

con = sql.connect("../data/database.sqlite")

org_country = pd.read_sql(
    "select * from Country", con
    )

org_league = pd.read_sql(
    "select * from League", con
    )


org_league
id country_id name
0 1 1 Belgium Jupiler League
1 1729 1729 England Premier League
2 4769 4769 France Ligue 1
3 7809 7809 Germany 1. Bundesliga
4 10257 10257 Italy Serie A
5 13274 13274 Netherlands Eredivisie
6 15722 15722 Poland Ekstraklasa
7 17642 17642 Portugal Liga ZON Sagres
8 19694 19694 Scotland Premier League
9 21518 21518 Spain LIGA BBVA
10 24558 24558 Switzerland Super League
df_match_basic
match_api_id country_id league_id season stage match_date home_team_api_id away_team_api_id
0 492473 1 1 2008/2009 1 2008-08-17 9987 9993
1 492474 1 1 2008/2009 1 2008-08-16 10000 9994
2 492475 1 1 2008/2009 1 2008-08-16 9984 8635
3 492476 1 1 2008/2009 1 2008-08-17 9991 9998
4 492477 1 1 2008/2009 1 2008-08-16 7947 9985
... ... ... ... ... ... ... ... ...
25974 1992091 24558 24558 2015/2016 9 2015-09-22 10190 10191
25975 1992092 24558 24558 2015/2016 9 2015-09-23 9824 10199
25976 1992093 24558 24558 2015/2016 9 2015-09-23 9956 10179
25977 1992094 24558 24558 2015/2016 9 2015-09-22 7896 10243
25978 1992095 24558 24558 2015/2016 9 2015-09-23 10192 9931

25979 rows × 8 columns

df_match_basic = df_match_basic.merge(org_country, how = "left", left_on = "country_id", right_on = "id") \
                     .rename(columns = {"name": "country_name"}).drop(["id"], axis = 1) \
                     .merge(org_league, how = "left", on = "country_id") \
                     .rename(columns = {"name": "league_name"}).drop(["id", "country_id", "league_id"], axis = 1) \
                    [["match_api_id", "country_name", "league_name", "season", "stage", "match_date", "home_team_api_id", "away_team_api_id"]]

df_match_basic
match_api_id country_name league_name season stage match_date home_team_api_id away_team_api_id
0 492473 Belgium Belgium Jupiler League 2008/2009 1 2008-08-17 9987 9993
1 492474 Belgium Belgium Jupiler League 2008/2009 1 2008-08-16 10000 9994
2 492475 Belgium Belgium Jupiler League 2008/2009 1 2008-08-16 9984 8635
3 492476 Belgium Belgium Jupiler League 2008/2009 1 2008-08-17 9991 9998
4 492477 Belgium Belgium Jupiler League 2008/2009 1 2008-08-16 7947 9985
... ... ... ... ... ... ... ... ...
25974 1992091 Switzerland Switzerland Super League 2015/2016 9 2015-09-22 10190 10191
25975 1992092 Switzerland Switzerland Super League 2015/2016 9 2015-09-23 9824 10199
25976 1992093 Switzerland Switzerland Super League 2015/2016 9 2015-09-23 9956 10179
25977 1992094 Switzerland Switzerland Super League 2015/2016 9 2015-09-22 7896 10243
25978 1992095 Switzerland Switzerland Super League 2015/2016 9 2015-09-23 10192 9931

25979 rows × 8 columns

df_match_basic.isna().sum()

match_api_id        0
country_name        0
league_name         0
season              0
stage               0
match_date          0
home_team_api_id    0
away_team_api_id    0
dtype: int64
  • There is no missing value in the match basic information.
df_match_basic.groupby(["country_name"]).league_name.nunique()

country_name
Belgium        1
England        1
France         1
Germany        1
Italy          1
Netherlands    1
Poland         1
Portugal       1
Scotland       1
Spain          1
Switzerland    1
Name: league_name, dtype: int64
  • There is only one league from each country.
df_match_basic.season.unique()

array(['2008/2009', '2009/2010', '2010/2011', '2011/2012', '2012/2013',
       '2013/2014', '2014/2015', '2015/2016'], dtype=object)

df_match_basic.groupby(["country_name", "league_name"]).season.nunique()

country_name  league_name
Belgium       Belgium Jupiler League      8
England       England Premier League      8
France        France Ligue 1              8
Germany       Germany 1. Bundesliga       8
Italy         Italy Serie A               8
Netherlands   Netherlands Eredivisie      8
Poland        Poland Ekstraklasa          8
Portugal      Portugal Liga ZON Sagres    8
Scotland      Scotland Premier League     8
Spain         Spain LIGA BBVA             8
Switzerland   Switzerland Super League    8
Name: season, dtype: int64
  • There are 8 seasons (2008/2009 ~ 2015/2016 seasons) from each league.
plt.figure(figsize = (15, 5))
sns.barplot(df_match_basic.groupby(["league_name", "season"]).stage.nunique().reset_index().groupby(["league_name"]).stage.mean().reset_index(),
            x = "league_name", y = "stage")
plt.ylabel("Average number of stages", fontsize = 15)
plt.xlabel("League", fontsize = 15)
plt.xticks(rotation=90)
plt.title("8 Seasons: 2008/2009 ~ 2015/2016", fontsize = 20)

Text(0.5, 1.0, '8 Seasons: 2008/2009 ~ 2015/2016')

png

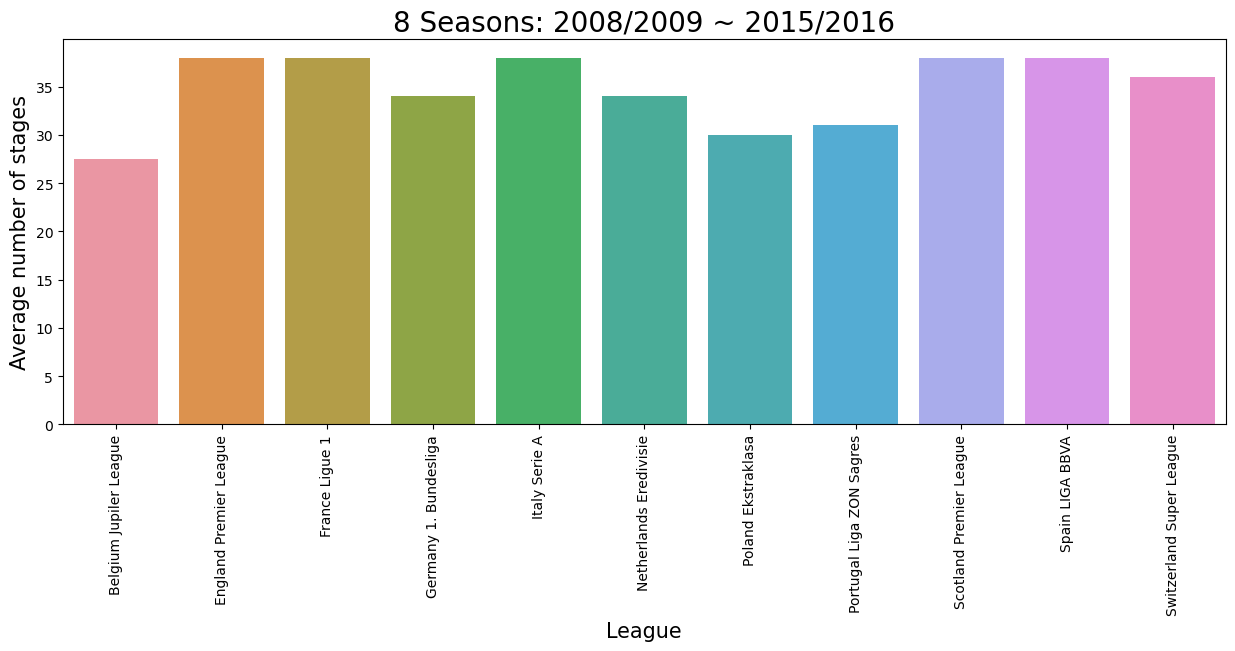

  • Above bar graph shows the average number of stages for 8 seasons from each league.

  • Each league has average 25 ~ 40 stages.

  • **Note**: Since matches are time-series data, it is not a good idea to randomly split train-test data set. So I decided to set the last 2015/2016 season as our test data and all other seasons as our train data.
df_match_basic[df_match_basic.season == "2015/2016"].match_api_id

1488     1979832
1489     1979833
1490     1979834
1491     1979835
1492     1979836
          ...
25974    1992091
25975    1992092
25976    1992093
25977    1992094
25978    1992095
Name: match_api_id, Length: 3326, dtype: int64

df_match_basic[~(df_match_basic.season == "2015/2016")].match_api_id

0         492473
1         492474
2         492475
3         492476
4         492477
          ...
25794    1717254
25795    1717255
25796    1717256
25797    1717257
25798    1717258
Name: match_api_id, Length: 22653, dtype: int64
  • There are 22,653 (87%) matches in the train set

  • There are 3,326 (13%) matches in the test set

  • Let’s save the train and test match_api_id.
df_match_basic[df_match_basic.season == "2015/2016"].match_api_id.to_csv("../data/test_match_api_id.csv", index = False)
df_match_basic[~(df_match_basic.season == "2015/2016")].match_api_id.to_csv("../data/train_match_api_id.csv", index = False)

Summary

  • Since matches are time-series data, it is not a good idea to randomly split train-test data set. So I decided to set the last 2015/2016 season as our test data and all other seasons as our train data.
  • The number of matches from the train data: 22,653 (87%) matches.
  • The number of matches from the test data: 3,326 (13%) matches.
