2 - 1) EDA - Dependent variable: Outcome

2 minute read

import pandas as pd
import numpy as np

import os

import matplotlib.pyplot as plt
import matplotlib.patches as mpatches
import seaborn as sns
import missingno as msno

import warnings
warnings.filterwarnings('ignore')

pd.set_option('display.max_columns', None)

df_merged = pd.read_csv("../data/df_merged.csv")

len(df_merged.ID.unique())

There are total 21,634 patients.
We have the outcome information of train and test patients in the train_outcome.csv and the test_outcome.csv.

train_outcome = pd.read_csv("../data/train_outcome.csv")
test_outcome = pd.read_csv("../data/test_outcome.csv")

outcome = pd.concat([test_outcome, train_outcome])

outcome.Outcome.value_counts()

0    18702
1     2932
Name: Outcome, dtype: int64

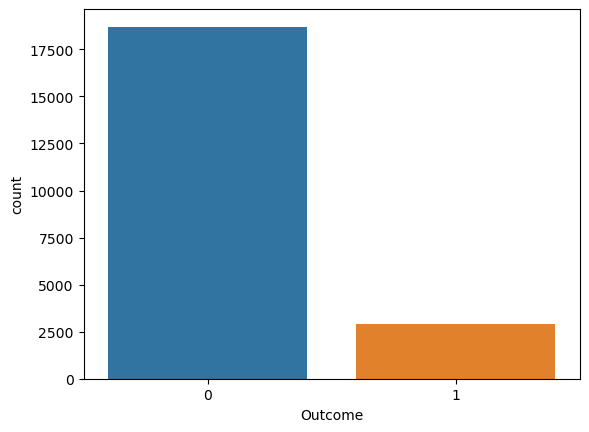

sns.countplot(x = outcome.Outcome)

<AxesSubplot:xlabel='Outcome', ylabel='count'>

png

13.5% patients out of total 21,634 patients have the sepsis.

print("Number of patients in the train data: ", train_outcome.shape[0])
print("Number of patients in the test data: ", test_outcome.shape[0])

Number of patients in the train data:  15144
Number of patients in the test data:  6490

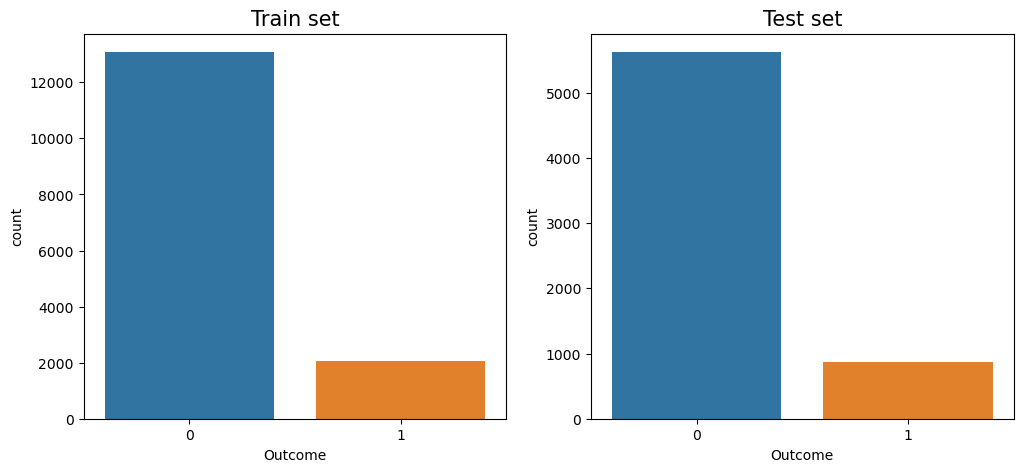

fig, axes = plt.subplots(1, 2, figsize = (12, 5))

sns.countplot(x = train_outcome.Outcome, ax = axes[0])
axes[0].set_title("Train set", fontsize = 15)

sns.countplot(x = test_outcome.Outcome, ax = axes[1])
axes[1].set_title("Test set", fontsize = 15)

Text(0.5, 1.0, 'Test set')

png

Train set and test set have the same sepsis ratio.
We can see that the Outcome variable is very imbalance.
So when we split the train set into train and validation set, we need the stratified sampling.
Let’s split the df_merged table into df_train and df_test tables by using the ID in the train_outcome and the test_outcome tables.

df_train = df_merged[df_merged.ID.isin(train_outcome.ID)]
df_test = df_merged[df_merged.ID.isin(test_outcome.ID)]

print("Train data shape: ", df_train.shape)
print("Test data shape: ", df_test.shape)

Train data shape:  (568775, 41)
Test data shape:  (244402, 41)

Save the tables.

df_train.to_csv("../data/df_train.csv", index = False)
df_test.to_csv("../data/df_test.csv", index = False)
